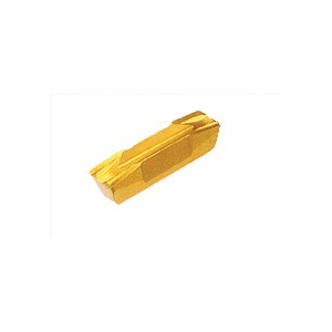

Iscar ISCAR 6401850
Iscar 6401850 CUT-GRIP Precision Ground Grooving Insert, Rectangle Shape, GIFG Insert, 800080 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC635, CVD-TiN+TiC+TiN Coated, Material Grade: M, P
Invoice description:
Gifg 8.00e-0.80 Ic635
Factory Order
Iscar Grooving Insert, Precision Ground, Series: CUT-GRIP, GIFG Insert, 800080 Insert, Rectangle Shape, 8 mm Cutting Width, 25 mm Maximum Depth of Cut, E Chipbreaker, 0.8 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC635, ISO Code: GIFG 8.00E-0.80 IC635, Neutral Cutting Direction, Carbide, CVD-TiN+TiC+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Grooving and Parting
ChipbreakerE
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishCVD-TiN+TiC+TiN Coated
Insert Size800080
Insert StyleGIFG
ISO CodeGIFG 8.00E-0.80 IC635
Length30 mm
Manufacturers GradeIC635
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut25 mm
SeriesCUT-GRIP
ShapeRectangle
TypePrecision Ground
Width8 mm
Additional Information
Country of OriginIL
