Iscar ISCAR 6401816

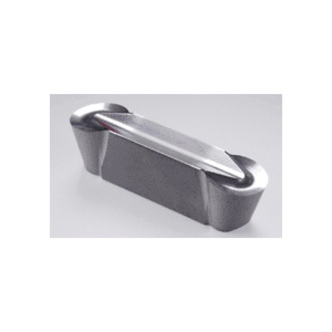

Iscar 6401816 CUT-GRIP Double End External Full Radius Precision Ground Grooving Insert, Rectangle Shape, GIDA Insert, 8040 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gida 80-40 Ic20
Factory Order

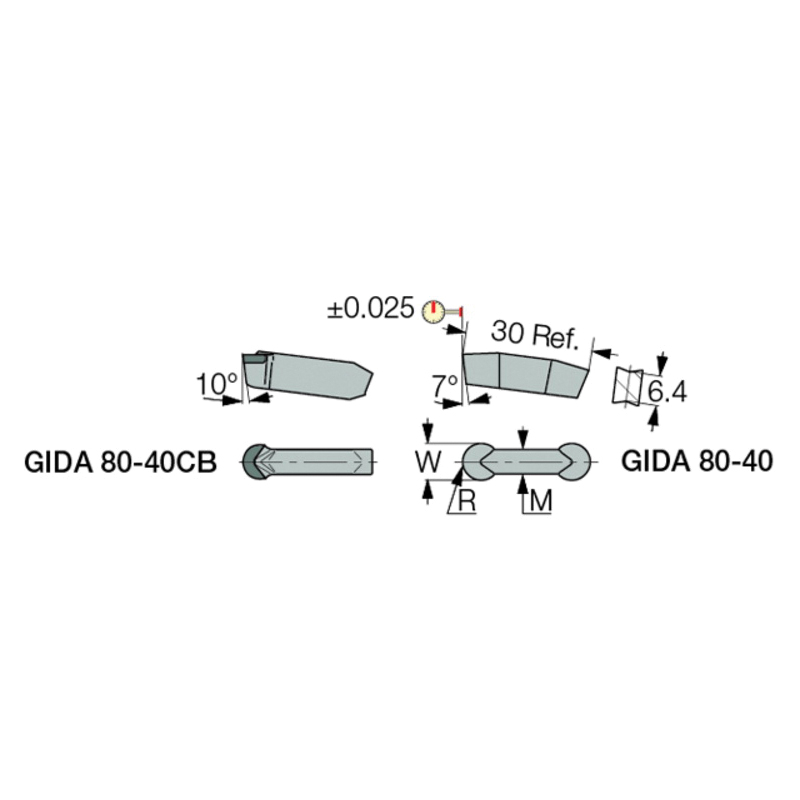

Iscar Grooving Insert, Double End External Full Radius Precision Ground, Series: CUT-GRIP, GIDA Insert, 8040 Insert, Rectangle Shape, 8 mm Cutting Width, 4 mm Maximum Depth of Cut, 4 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC20, ISO Code: GIDA 80-40 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- For machining aluminum wheels
- Polished to avoid built-up edge
- Used in medium to high feeds
Specifications
ApplicationExternal Grooving and Parting
Corner Radius4 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishUncoated
Insert Size8040
Insert StyleGIDA
ISO CodeGIDA 80-40 IC20
Length30 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End External Full Radius Precision Ground
Width8 mm
Additional Information
Country of OriginIL
