Iscar ISCAR 6401780

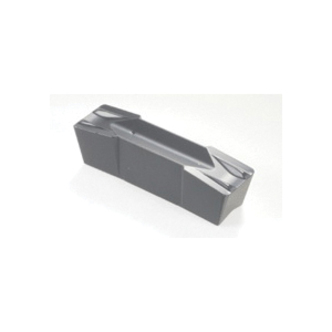

Iscar 6401780 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIF Insert, 800080 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Gif 8.00e-0.80 Ic428
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIF Insert, 800080 Insert, Rectangle Shape, 8 mm Cutting Width, 4.8 mm Maximum Depth of Cut, 7 deg Lead Angle, E Chipbreaker, 0.8 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC428, ISO Code: GIF 8.00E-0.80 IC428, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Features
- Medium to high feeds
Specifications
ApplicationExternal Grooving, Heavy Duty Machining and Turning
ChipbreakerE
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size800080
Insert StyleGIF
ISO CodeGIF 8.00E-0.80 IC428
Lead Angle7 deg
Length30 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut4.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width8 mm
Additional Information
Country of OriginIL
