Iscar ISCAR 6401755

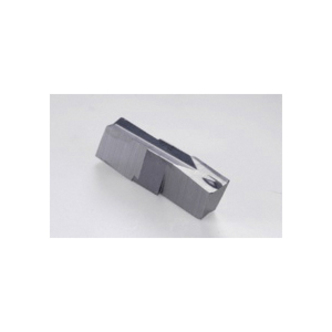

Iscar 6401755 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 300020 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 3.00-0.20 Ic20
Factory Order
Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 300020 Insert, Rectangle Shape, 3 mm Cutting Width, 13 mm Maximum Depth of Cut, P Chipbreaker, 0.2 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 3.00-0.20 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Precision ground inserts for grooving and recessing
Specifications
ApplicationExternal Grooving and Recessing
ChipbreakerP
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishUncoated
Insert Size300020
Insert StyleGIP
ISO CodeGIP 3.00-0.20 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut13 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width3 mm
Additional Information
Country of OriginIS
