Iscar ISCAR 6401369

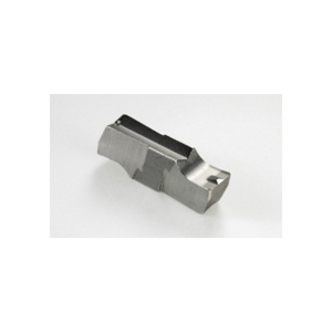

Iscar 6401369 CUT-GRIP Precision Double End Full Radius Grooving Insert, Rectangle Shape, GIPI Insert, 400040 Insert, Neutral Cutting, 5 mm H x 4 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gipi 4.00e-0.40 Ic20
Factory Order
Iscar Grooving Insert, Precision Double End Full Radius, Series: CUT-GRIP, GIPI Insert, 400040 Insert, Rectangle Shape, 4 mm Cutting Width, 2 mm Maximum Depth of Cut, 5 mm Cutting Height, E Chipbreaker, 0.4 mm Corner Radius, 4 mm Width, 15.7 mm Length, Manufacturers Grade: IC20, ISO Code: GIPI 4.00E-0.40 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Medium feeds
Specifications
ApplicationInternal Grooving and Recessing
ChipbreakerE
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Height5 mm
Cutting Width4 mm
FinishUncoated
Insert Size400040
Insert StyleGIPI
ISO CodeGIPI 4.00E-0.40 IC20
Length15.7 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2 mm
SeriesCUT-GRIP
ShapeRectangle
TypePrecision Double End Full Radius
Width4 mm
Additional Information
Country of OriginIL
