  5. ISCAR 6401256

Iscar ISCAR 6401256

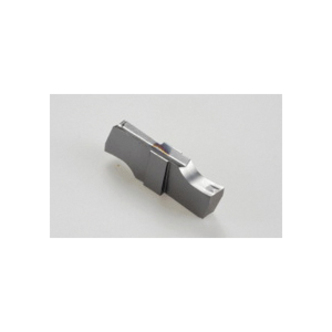

Iscar 6401256 CUT-GRIP Precision Double End Grooving Insert, Rectangle Shape, GIPI Insert, 239015 Insert, Neutral Cutting, 2.39 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S

UNSPSC: 23242107
Manufacturer PN: 6401256
$33.76 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Precision Double End, Series: CUT-GRIP, GIPI Insert, 239015 Insert, Rectangle Shape, 2.39 mm Cutting Width, 6.4 mm Maximum Depth of Cut, P Chipbreaker, 0.15 mm Corner Radius, 2.4 mm Width, 15.7 mm Length, Manufacturers Grade: IC20, ISO Code: GIPI 2.39-0.15 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S

Specifications

ApplicationInternal Grooving and Parting
ChipbreakerP
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width2.39 mm
FinishUncoated
Insert Size239015
Insert StyleGIPI
ISO CodeGIPI 2.39-0.15 IC20
Length15.7 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut6.4 mm
SeriesCUT-GRIP
ShapeRectangle
TypePrecision Double End
Width2.4 mm
