Iscar ISCAR 6400850

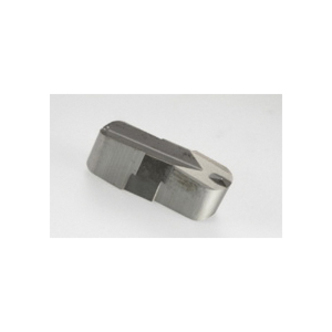

Iscar 6400850 CUT-GRIP Double End Precision Grooving Insert, Rectangle Shape, GIP Insert, 400200 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S

UNSPSC: 23242107
Manufacturer PN: 6400850
$36.98 EA
Factory Order
Estimated to ship in 14 days
QTY:

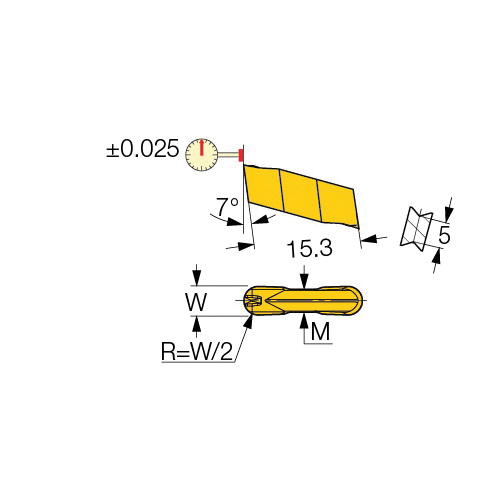

Iscar Grooving Insert, Double End Precision, Series: CUT-GRIP, GIP Insert, 400200 Insert, Rectangle Shape, 4 mm Cutting Width, 2 mm Maximum Depth of Cut, E Chipbreaker, 2 mm Corner Radius, 4 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 4.00E-2.00 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S

Specifications

ApplicationExternal Grooving, Profiling and Parting
ChipbreakerE
Corner Radius2 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishUncoated
Insert Size400200
Insert StyleGIP
ISO CodeGIP 4.00E-2.00 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision
Width4 mm
