Iscar ISCAR 6400797

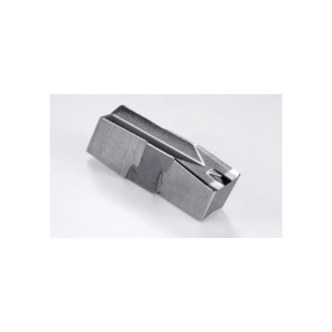

Iscar 6400797 CUT-GRIP Double End Precision Grooving Insert, Rectangle Shape, GIP Insert, 400040 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 4.00e-0.40 Ic20
Factory Order
Iscar Grooving Insert, Double End Precision, Series: CUT-GRIP, GIP Insert, 400040 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, E Chipbreaker, 0.4 mm Corner Radius, 4 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 4.00E-0.40 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- External insert with double edge for channel and face
- Medium and high machining chipper
Specifications
ApplicationTurning and Grooving
ChipbreakerE
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishUncoated
Insert Size400040
Insert StyleGIP
ISO CodeGIP 4.00E-0.40 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2.4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision
Width4 mm
Additional Information
Country of OriginIL
