Iscar ISCAR 6400665

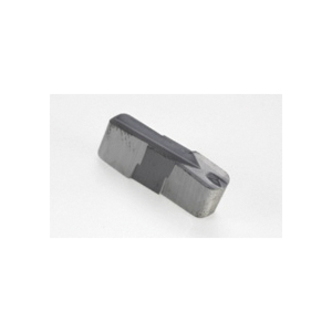

Iscar 6400665 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 318159 Insert, Neutral Cutting, 3.18 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 3.18-1.59 Ic20
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 318159 Insert, Rectangle Shape, 3.18 mm Cutting Width, 12.2 mm Maximum Depth of Cut, P Chipbreaker, 1.59 mm Corner Radius, 3.18 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 3.18-1.59 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationRecessing and Parting
ChipbreakerP
Corner Radius1.59 mm
Cutting DirectionNeutral
Cutting Width3.18 mm
FinishUncoated
Insert Size318159
Insert StyleGIP
ISO CodeGIP 3.18-1.59 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut12.2 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width3.18 mm
