Iscar ISCAR 6400659

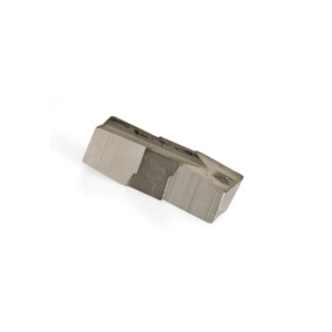

Iscar 6400659 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 318020 Insert, Neutral Cutting, 3.18 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 3.18-0.20 Ic20
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 318020 Insert, Rectangle Shape, 3.18 mm Cutting Width, 13 mm Maximum Depth of Cut, 7 deg Lead Angle, P Chipbreaker, 0.2 mm Corner Radius, 3.18 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 3.18-0.20 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationRecessing and Parting
ChipbreakerP
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3.18 mm
FinishUncoated
Insert Size318020
Insert StyleGIP
ISO CodeGIP 3.18-0.20 IC20
Lead Angle7 deg
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut13 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width3.18 mm
Additional Information
Country of OriginCH
