Iscar ISCAR 6400652

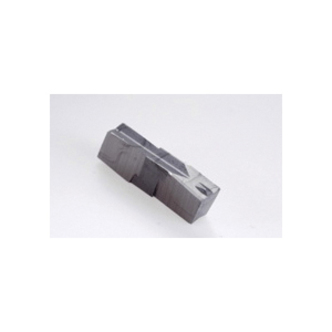

Iscar 6400652 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 315015 Insert, Neutral Cutting, 3.15 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 3.15-0.15 Ic20
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 315015 Insert, Rectangle Shape, 3.15 mm Cutting Width, 13 mm Maximum Depth of Cut, P Chipbreaker, 0.15 mm Corner Radius, 3.15 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 3.15-0.15 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationExternal Grooving and Recessing
ChipbreakerP
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width3.15 mm
FinishUncoated
Insert Size315015
Insert StyleGIP
ISO CodeGIP 3.15-0.15 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut13 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width3.15 mm
Additional Information
Country of OriginIS
