Iscar ISCAR 6400624

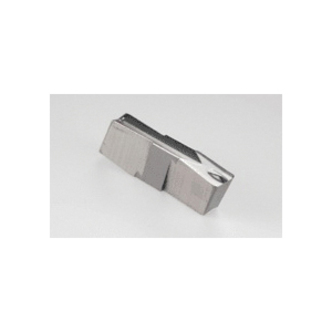

Iscar 6400624 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 300040 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 3.00e-0.40 Ic20
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 300040 Insert, Rectangle Shape, 3 mm Cutting Width, 1.8 mm Maximum Depth of Cut, E Chipbreaker, 0.4 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 3.00E-0.40 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationExternal Grooving, Parting and Turning
ChipbreakerE
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishUncoated
Insert Size300040
Insert StyleGIP
ISO CodeGIP 3.00E-0.40 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut1.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width3 mm
