Iscar ISCAR 6400568

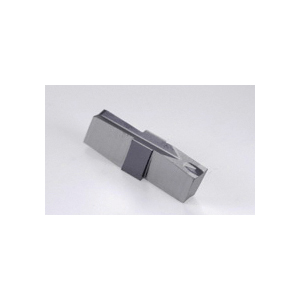

Iscar 6400568 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 239015 Insert, Neutral Cutting, 2.39 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 2.39-0.15 Ic20
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 239015 Insert, Rectangle Shape, 2.39 mm Cutting Width, 4.7 mm Maximum Depth of Cut, P Chipbreaker, 0.15 mm Corner Radius, 2.4 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 2.39-0.15 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationRecessing and Parting
ChipbreakerP
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width2.39 mm
FinishUncoated
Insert Size239015
Insert StyleGIP
ISO CodeGIP 2.39-0.15 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut4.7 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width2.4 mm
Additional Information
Country of OriginIL
