Iscar ISCAR 6400536

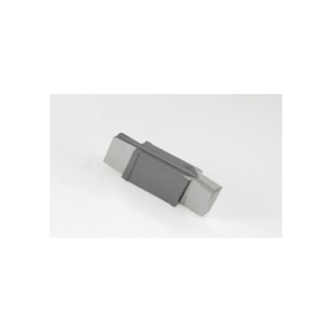

Iscar 6400536 CUT-GRIP Flat Top Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 178018 Insert, Neutral Cutting, 1.78 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gip 1.78-0.18 Ic20
Factory Order
Iscar Grooving Insert, Flat Top Precision Ground, Series: CUT-GRIP, GIP Insert, 178018 Insert, Rectangle Shape, 1.78 mm Cutting Width, 3 mm Maximum Depth of Cut, 0.18 mm Corner Radius, 2.2 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIP 1.78-0.18 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.18 mm
Cutting DirectionNeutral
Cutting Width1.78 mm
FinishUncoated
Insert Size178018
Insert StyleGIP
ISO CodeGIP 1.78-0.18 IC20
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut3 mm
SeriesCUT-GRIP
ShapeRectangle
TypeFlat Top Precision Ground
Width2.2 mm
Additional Information
Country of OriginIL
