Iscar ISCAR 6291277

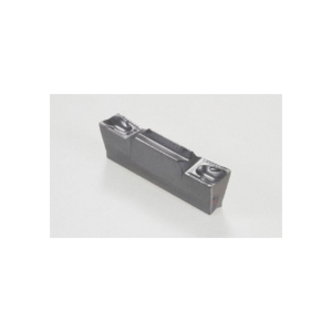

Iscar 6291277 HELI-GRIP Y-Type Double End Twisted Utility Grooving Insert, Rectangle Shape, GRIP Insert, 4004 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Grip 4004y Ic908
Factory Order
Iscar Grooving Insert, Y-Type Double End Twisted Utility, Series: HELI-GRIP, GRIP Insert, 4004 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, 0 deg Lead Angle, Y Chipbreaker, 0.4 mm Corner Radius, 4 mm Width, 19 mm Length, Manufacturers Grade: IC908, ISO Code: GRIP 4004Y IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal, Internal Grooving and Turning, Face Grooving and Turning, Face Grooving Along Shaft, Internal Face Grooving and Turning
ChipbreakerY
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishPVD-TiAlN Coated
Insert Size4004
Insert StyleGRIP
ISO CodeGRIP 4004Y IC908
Lead Angle0 deg
Length19 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2.4 mm
SeriesHELI-GRIP
ShapeRectangle
TypeY-Type Double End Twisted Utility
Width4 mm
Additional Information
Country of OriginIS
