Iscar ISCAR 6290465

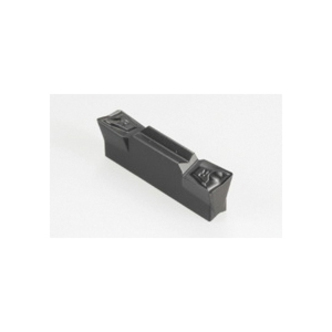

Iscar 6290465 HELIFACE Double End Utility Grooving Insert, Rectangle Shape, HFPR Insert, 4004 Insert, Right Hand Cutting, 4 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Hfpr 4004 Ic428
Factory Order
Iscar Grooving Insert, Double End Utility, Series: HELIFACE, HFPR Insert, 4004 Insert, Rectangle Shape, 4 mm Cutting Width, 2 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 4 mm Width, 19 mm Length, Manufacturers Grade: IC428, ISO Code: HFPR 4004 IC428, Right Hand Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Specifications
ApplicationExternal Grooving, Parting and Face Machining
Corner Radius0.4 mm
Cutting DirectionRight Hand
Cutting Width4 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size4004
Insert StyleHFPR
ISO CodeHFPR 4004 IC428
Length19 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut2 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End Utility
Width4 mm
Additional Information
Country of OriginIL
