Iscar ISCAR 6290153

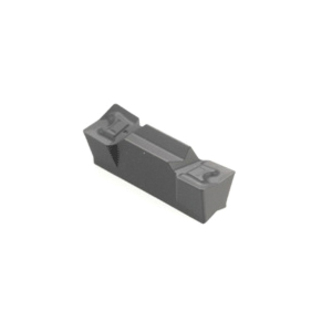

Iscar 6290153 HELIFACE Double End External Utility Grooving Insert, Rectangle Shape, HFPL Insert, 6004 Insert, Left Hand Cutting, 6 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Hfpl 6004 Ic428
Factory Order
Iscar Grooving Insert, Double End External Utility, Series: HELIFACE, HFPL Insert, 6004 Insert, Rectangle Shape, 6 mm Cutting Width, 3 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 6 mm Width, 19 mm Length, Manufacturers Grade: IC428, ISO Code: HFPL 6004 IC428, Left Hand Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Specifications
ApplicationExternal Grooving, Parting, Turning, Internal Face Grooving, Face Turning, Face Grooving Along Shaft and Internal Face Recessing
Corner Radius0.4 mm
Cutting DirectionLeft Hand
Cutting Width6 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size6004
Insert StyleHFPL
ISO CodeHFPL 6004 IC428
Length19 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut3 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End External Utility
Width6 mm
Additional Information
Country of OriginIL
