Iscar ISCAR 6200414

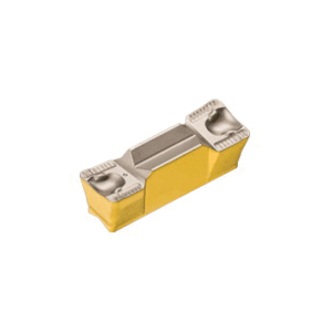

Iscar 6200414 HELI-GRIP Double End Utility Grooving Insert, Rectangle Shape, GRIP Insert, 4002 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Grip 4002y Ic8250
Factory Order
Iscar Grooving Insert, Double End Utility, Series: HELI-GRIP, GRIP Insert, 4002 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, Y Chipbreaker, 0.2 mm Corner Radius, 4 mm Width, 19 mm Length, Manufacturers Grade: IC8250, ISO Code: GRIP 4002Y IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal/Internal Grooving and Turning, Face Grooving and Turing and Parting
ChipbreakerY
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size4002
Insert StyleGRIP
ISO CodeGRIP 4002Y IC8250
Length19 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2.4 mm
SeriesHELI-GRIP
ShapeRectangle
TypeDouble End Utility
Width4 mm
Additional Information
Country of OriginIL
