Iscar ISCAR 6200377

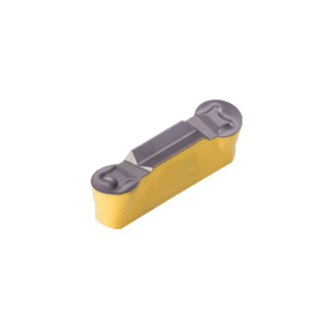

Iscar 6200377 HELIFACE Double End Full Radius Utility Grooving Insert, Rectangle Shape, HFPR Insert, 6030 Insert, Right Hand Cutting, 6 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

UNSPSC: 23242107
Manufacturer PN: 6200377
$56.34 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Double End Full Radius Utility, Series: HELIFACE, HFPR Insert, 6030 Insert, Rectangle Shape, 6 mm Cutting Width, 3 mm Maximum Depth of Cut, 3 mm Corner Radius, 6 mm Width, 19 mm Length, Manufacturers Grade: IC8250, ISO Code: HFPR 6030 IC8250, Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

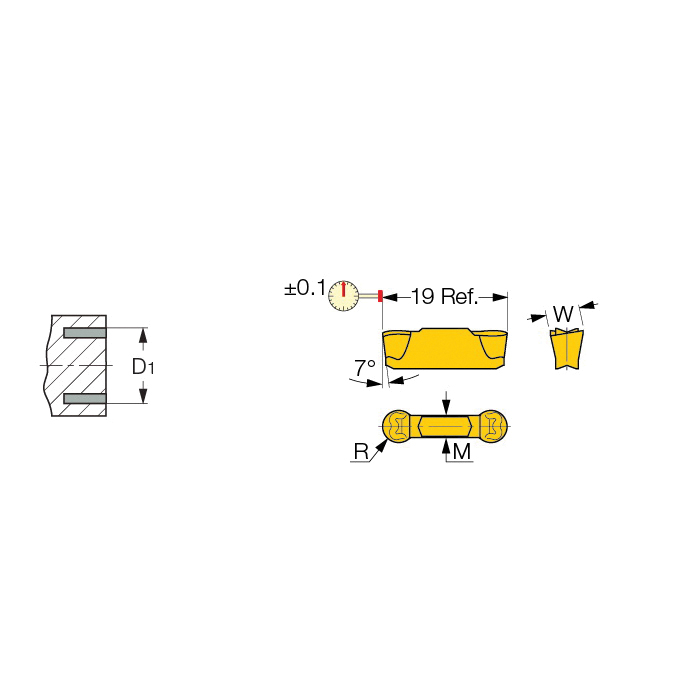

Specifications

ApplicationExternal Grooving, Parting and Face Machining
Corner Radius3 mm
Cutting DirectionRight Hand
Cutting Width6 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size6030
Insert StyleHFPR
ISO CodeHFPR 6030 IC8250
Length19 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End Full Radius Utility
Width6 mm
