Iscar ISCAR 6200376

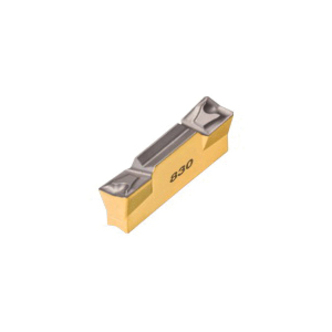

Iscar 6200376 HELIFACE Double End Utility Grooving Insert, Rectangle Shape, HFPR Insert, 6004 Insert, Right Hand Cutting, 6 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Hfpr 6004 Ic8250
Factory Order
Iscar Grooving Insert, Double End Utility, Series: HELIFACE, HFPR Insert, 6004 Insert, Rectangle Shape, 6 mm Cutting Width, 3 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 6 mm Width, 19 mm Length, Manufacturers Grade: IC8250, ISO Code: HFPR 6004 IC8250, Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Grooving, Parting and Face Machining
Corner Radius0.4 mm
Cutting DirectionRight Hand
Cutting Width6 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size6004
Insert StyleHFPR
ISO CodeHFPR 6004 IC8250
Length19 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End Utility
Width6 mm
Additional Information
Country of OriginIL
