Iscar ISCAR 6200334

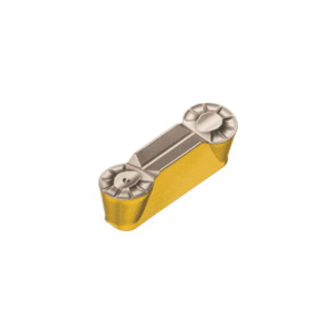

Iscar 6200334 HELI-GRIP Y-Type Double End Full Radius Twisted Utility Grooving Insert, Rectangle Shape, GRIP Insert, 635318 Insert, Neutral Cutting, 6.35 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Invoice description:
Grip 635-318y Ic808
Factory Order
Iscar Grooving Insert, Y-Type Double End Full Radius Twisted Utility, Series: HELI-GRIP, GRIP Insert, 635318 Insert, Rectangle Shape, 6.35 mm Cutting Width, 3.1 mm Maximum Depth of Cut, Y Chipbreaker, 3.18 mm Corner Radius, 6.35 mm Width, 19 mm Length, Manufacturers Grade: IC808, ISO Code: GRIP 635-318Y IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal, Internal Grooving and Turning, Face Grooving and Turning, Face Grooving Along Shaft, Internal Face Grooving and Turning
ChipbreakerY
Corner Radius3.18 mm
Cutting DirectionNeutral
Cutting Width6.35 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size635318
Insert StyleGRIP
ISO CodeGRIP 635-318Y IC808
Length19 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3.1 mm
SeriesHELI-GRIP
ShapeRectangle
TypeY-Type Double End Full Radius Twisted Utility
Width6.35 mm
Additional Information
Country of OriginIS
