Iscar ISCAR 6200195

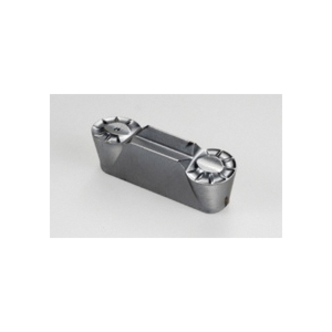

Iscar 6200195 HELI-GRIP Double End Full Radius Utility Grooving Insert, Rectangle Shape, GRIP Insert, 6030 Insert, Neutral Cutting, 6 mm W Cutting, Manufacturers Grade: IC418, CVD-TiC+Al2O3 Coated, Material Grade: K
Invoice description:
Grip 6030y Ic418
Factory Order

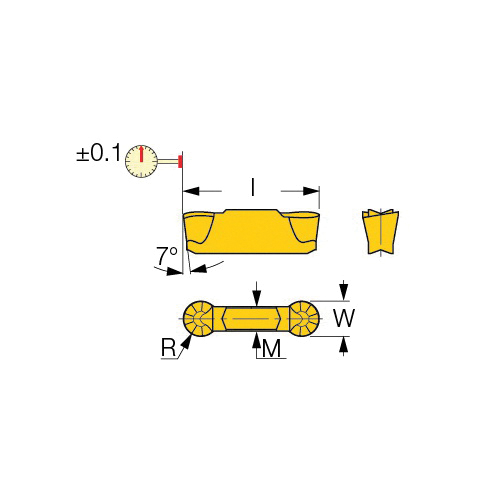

Iscar Grooving Insert, Double End Full Radius Utility, Series: HELI-GRIP, GRIP Insert, 6030 Insert, Rectangle Shape, 6 mm Cutting Width, 3 mm Maximum Depth of Cut, Y Chipbreaker, 3 mm Corner Radius, 6 mm Width, 19 mm Length, Manufacturers Grade: IC418, ISO Code: GRIP 6030Y IC418, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: K
Specifications
ApplicationExternal/Internal Grooving and Turning, Face Grooving and Turing and Parting
ChipbreakerY
Corner Radius3 mm
Cutting DirectionNeutral
Cutting Width6 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size6030
Insert StyleGRIP
ISO CodeGRIP 6030Y IC418
Length19 mm
Manufacturers GradeIC418
MaterialCarbide
Material GradeK
Maximum Depth of Cut3 mm
SeriesHELI-GRIP
ShapeRectangle
TypeDouble End Full Radius Utility
Width6 mm
Additional Information
Country of OriginIL
