Iscar ISCAR 6200147

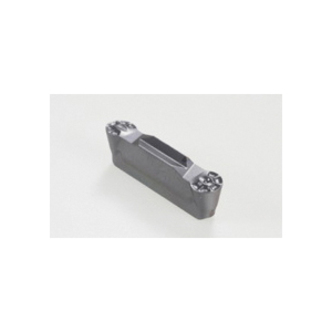

Iscar 6200147 HELI-GRIP Double End Full Radius Utility Grooving Insert, Rectangle Shape, GRIP Insert, 4020 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6200147
$43.74 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Double End Full Radius Utility, Series: HELI-GRIP, GRIP Insert, 4020 Insert, Rectangle Shape, 4 mm Cutting Width, 2 mm Maximum Depth of Cut, 0 deg Lead Angle, Y Chipbreaker, 2 mm Corner Radius, 4 mm Width, 19 mm Length, Manufacturers Grade: IC908, ISO Code: GRIP 4020Y IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal/Internal Grooving and Turning, Face Grooving and Turing and Parting
ChipbreakerY
Corner Radius2 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishPVD-TiAlN Coated
Insert Size4020
Insert StyleGRIP
ISO CodeGRIP 4020Y IC908
Lead Angle0 deg
Length19 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2 mm
SeriesHELI-GRIP
ShapeRectangle
TypeDouble End Full Radius Utility
Width4 mm
