Iscar ISCAR 6200134

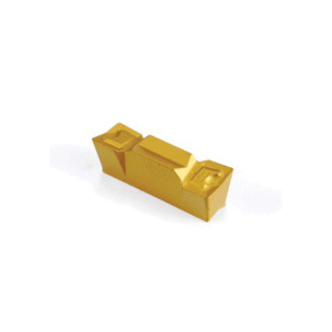

Iscar 6200134 HELIFACE Double End Utility Grooving Insert, Rectangle Shape, HFPR Insert, 6004 Insert, Right Hand Cutting, 6 mm W Cutting, Manufacturers Grade: IC9015, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P
Factory Order

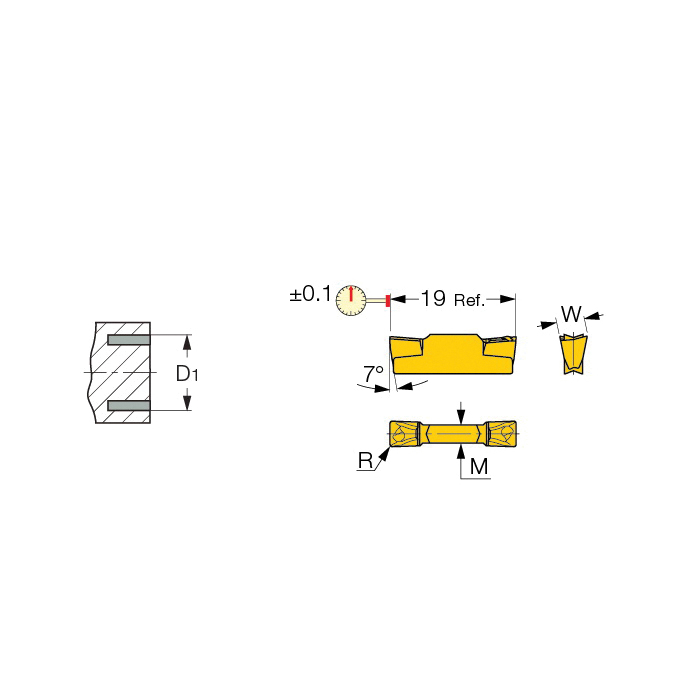

Iscar Grooving Insert, Double End Utility, Series: HELIFACE, HFPR Insert, 6004 Insert, Rectangle Shape, 6 mm Cutting Width, 3 mm Maximum Depth of Cut, 0 deg Lead Angle, 0.4 mm Corner Radius, 6 mm Width, 19 mm Length, Manufacturers Grade: IC9015, ISO Code: HFPR 6004 IC9015, Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P
Specifications
ApplicationExternal Grooving, Parting and Face Machining
Corner Radius0.4 mm
Cutting DirectionRight Hand
Cutting Width6 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size6004
Insert StyleHFPR
ISO CodeHFPR 6004 IC9015
Lead Angle0 deg
Length19 mm
Manufacturers GradeIC9015
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End Utility
Width6 mm
