Iscar ISCAR 6200117

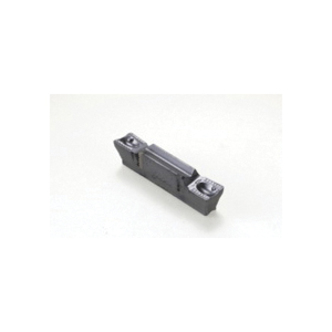

Iscar 6200117 HELI-GRIP Double End Utility Grooving Insert, Rectangle Shape, GRIP Insert, 3002 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6200117
$38.58 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Double End Utility, Series: HELI-GRIP, GRIP Insert, 3002 Insert, Rectangle Shape, 3 mm Cutting Width, 1.8 mm Maximum Depth of Cut, 0 deg Lead Angle, Y Chipbreaker, 0.2 mm Corner Radius, 3 mm Width, 16 mm Length, Manufacturers Grade: IC908, ISO Code: GRIP 3002Y IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal/Internal Grooving and Turning, Face Grooving and Turing and Parting
ChipbreakerY
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN Coated
Insert Size3002
Insert StyleGRIP
ISO CodeGRIP 3002Y IC908
Lead Angle0 deg
Length16 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1.8 mm
SeriesHELI-GRIP
ShapeRectangle
TypeDouble End Utility
Width3 mm
