Iscar ISCAR 6200082

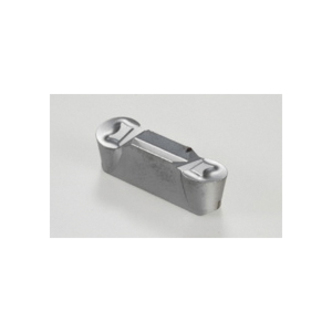

Iscar 6200082 HELIFACE Double End External Full Radius Utility Grooving Insert, Rectangle Shape, HFPL Insert, 6030 Insert, Left Hand Cutting, 6 mm W Cutting, Manufacturers Grade: IC354, PVD-TiCN Coated, Material Grade: M, P
Invoice description:
Hfpl 6030 Ic354
Factory Order
Iscar Grooving Insert, Double End External Full Radius Utility, Series: HELIFACE, HFPL Insert, 6030 Insert, Rectangle Shape, 6 mm Cutting Width, 3 mm Maximum Depth of Cut, 3 mm Corner Radius, 6 mm Width, 19 mm Length, Manufacturers Grade: IC354, ISO Code: HFPL 6030 IC354, Left Hand Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P
Specifications
ApplicationExternal Grooving, Parting, Turning, Internal Face Grooving, Face Turning, Face Grooving Along Shaft and Internal Face Recessing
Corner Radius3 mm
Cutting DirectionLeft Hand
Cutting Width6 mm
FinishPVD-TiCN Coated
Insert Size6030
Insert StyleHFPL
ISO CodeHFPL 6030 IC354
Length19 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End External Full Radius Utility
Width6 mm
Additional Information
Country of OriginIL
