Iscar ISCAR 6200079

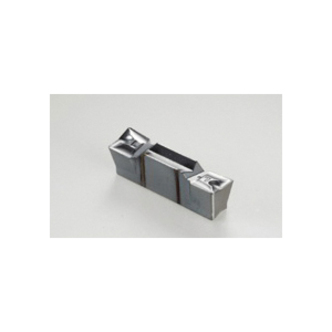

Iscar 6200079 HELIFACE Double End Utility Grooving Insert, Rectangle Shape, HFPL Insert, 5004 Insert, Left Hand Cutting, 5 mm W Cutting, Manufacturers Grade: IC354, PVD-TiCN Coated, Material Grade: M, P
Invoice description:
Hfpl 5004 Ic354
Factory Order

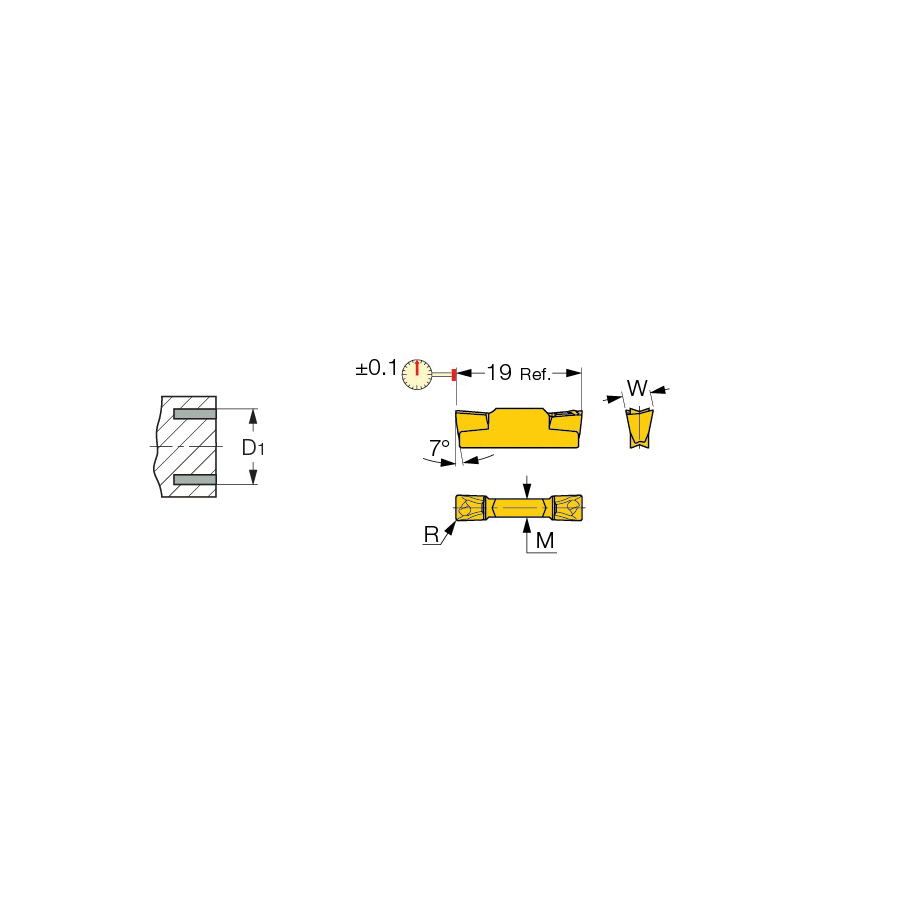

Iscar Grooving Insert, Double End Utility, Series: HELIFACE, HFPL Insert, 5004 Insert, Rectangle Shape, 5 mm Cutting Width, 2.5 mm Maximum Depth of Cut, 0 deg Lead Angle, 0.4 mm Corner Radius, 5 mm Width, 19 mm Length, Manufacturers Grade: IC354, ISO Code: HFPL 5004 IC354, Left Hand Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P
Specifications
ApplicationFace Grooving, Face Grooving and Turning, Face Grooving Along Shaft, Groove Turning, Internal Face Grooving, Face Machining and Internal Face Recessing
Corner Radius0.4 mm
Cutting DirectionLeft Hand
Cutting Width5 mm
FinishPVD-TiCN Coated
Insert Size5004
Insert StyleHFPL
ISO CodeHFPL 5004 IC354
Lead Angle0 deg
Length19 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2.5 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End Utility
Width5 mm
Additional Information
Country of OriginIL
