Iscar ISCAR 6200077

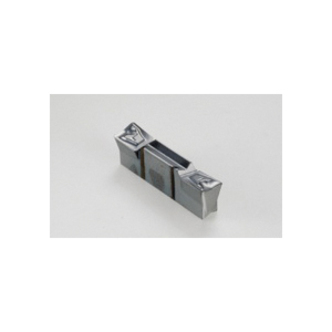

Iscar 6200077 HELIFACE Double End External Utility Grooving Insert, Rectangle Shape, HFPL Insert, 4004 Insert, Left Hand Cutting, 4 mm W Cutting, Manufacturers Grade: IC354, PVD-TiCN Coated, Material Grade: M, P
Factory Order
Iscar Grooving Insert, Double End External Utility, Series: HELIFACE, HFPL Insert, 4004 Insert, Rectangle Shape, 4 mm Cutting Width, 2 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 4 mm Width, 19 mm Length, Manufacturers Grade: IC354, ISO Code: HFPL 4004 IC354, Left Hand Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P
Specifications
ApplicationExternal Grooving, Parting, Turning, Internal Face Grooving, Face Turning, Face Grooving Along Shaft and Internal Face Recessing
Corner Radius0.4 mm
Cutting DirectionLeft Hand
Cutting Width4 mm
FinishPVD-TiCN Coated
Insert Size4004
Insert StyleHFPL
ISO CodeHFPL 4004 IC354
Length19 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End External Utility
Width4 mm
