Iscar ISCAR 6200075

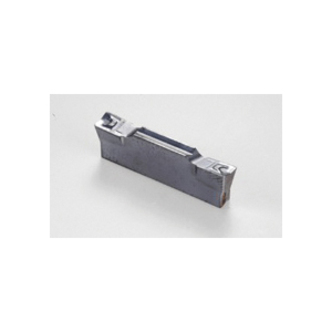

Iscar 6200075 HELIFACE Double End External Utility Grooving Insert, Rectangle Shape, HFPL Insert, 3003 Insert, Left Hand Cutting, 3 mm W Cutting, Manufacturers Grade: IC354, PVD-TiCN Coated, Material Grade: M, P
Invoice description:
Hfpl 3003 Ic354
Factory Order
Iscar Grooving Insert, Double End External Utility, Series: HELIFACE, HFPL Insert, 3003 Insert, Rectangle Shape, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 0.3 mm Corner Radius, 3 mm Width, 19 mm Length, Manufacturers Grade: IC354, ISO Code: HFPL 3003 IC354, Left Hand Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P
Specifications
ApplicationExternal Grooving, Parting, Turning, Internal Face Grooving, Face Turning, Face Grooving Along Shaft and Internal Face Recessing
Corner Radius0.3 mm
Cutting DirectionLeft Hand
Cutting Width3 mm
FinishPVD-TiCN Coated
Insert Size3003
Insert StyleHFPL
ISO CodeHFPL 3003 IC354
Length19 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut1.5 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End External Utility
Width3 mm
Additional Information
Country of OriginIL
