Iscar ISCAR 6200071

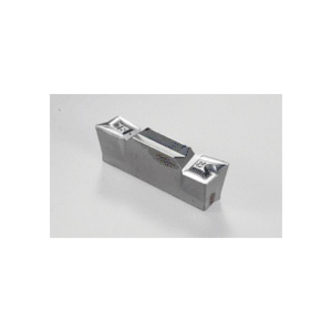

Iscar 6200071 HELIFACE Double End Utility Grooving Insert, Rectangle Shape, HFPR Insert, 5004 Insert, Right Hand Cutting, 5 mm W Cutting, Manufacturers Grade: IC354, PVD-TiCN Coated, Material Grade: M, P
Invoice description:
Hfpr 5004 Ic354
Factory Order
Iscar Grooving Insert, Double End Utility, Series: HELIFACE, HFPR Insert, 5004 Insert, Rectangle Shape, 5 mm Cutting Width, 2.5 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 5 mm Width, 19 mm Length, Manufacturers Grade: IC354, ISO Code: HFPR 5004 IC354, Right Hand Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P
Specifications
ApplicationExternal Grooving, Parting and Face Machining
Corner Radius0.4 mm
Cutting DirectionRight Hand
Cutting Width5 mm
FinishPVD-TiCN Coated
Insert Size5004
Insert StyleHFPR
ISO CodeHFPR 5004 IC354
Length19 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2.5 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End Utility
Width5 mm
Additional Information
Country of OriginIL
