Iscar ISCAR 6200044

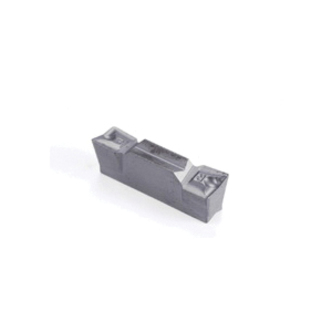

Iscar 6200044 HELIFACE Double End Utility Grooving Insert, Rectangle Shape, HFPR Insert, 5004 Insert, Right Hand Cutting, 5 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Hfpr 5004 Ic20
Factory Order
Iscar Grooving Insert, Double End Utility, Series: HELIFACE, HFPR Insert, 5004 Insert, Rectangle Shape, 5 mm Cutting Width, 2.5 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 5 mm Width, 19 mm Length, Manufacturers Grade: IC20, ISO Code: HFPR 5004 IC20, Right Hand Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationExternal Grooving, Parting and Face Machining
Corner Radius0.4 mm
Cutting DirectionRight Hand
Cutting Width5 mm
FinishUncoated
Insert Size5004
Insert StyleHFPR
ISO CodeHFPR 5004 IC20
Length19 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2.5 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End Utility
Width5 mm
Additional Information
Country of OriginIL
