Iscar ISCAR 6200037

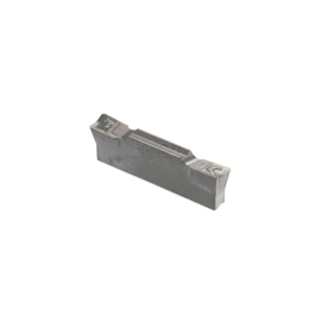

Iscar 6200037 HELIFACE Double End External Utility Grooving Insert, Rectangle Shape, HFPL Insert, 3003 Insert, Left Hand Cutting, 3 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Hfpl 3003 Ic20
Factory Order
Iscar Grooving Insert, Double End External Utility, Series: HELIFACE, HFPL Insert, 3003 Insert, Rectangle Shape, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 0.3 mm Corner Radius, 3 mm Width, 19 mm Length, Manufacturers Grade: IC20, ISO Code: HFPL 3003 IC20, Left Hand Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Specifications
ApplicationExternal Grooving, Parting, Turning, Internal Face Grooving, Face Turning, Face Grooving Along Shaft and Internal Face Recessing
Corner Radius0.3 mm
Cutting DirectionLeft Hand
Cutting Width3 mm
FinishUncoated
Insert Size3003
Insert StyleHFPL
ISO CodeHFPL 3003 IC20
Length19 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut1.5 mm
SeriesHELIFACE
ShapeRectangle
TypeDouble End External Utility
Width3 mm
Additional Information
Country of OriginIL
