Iscar ISCAR 6097584

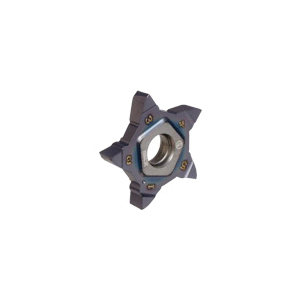

Iscar 6097584 PENTACUT External Precision Ground Grooving Insert, Pentagon Shape, PENTA Insert, 24 Insert, Neutral Cutting, 2 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Penta 24n200nf020rs Ic90 8
Factory Order

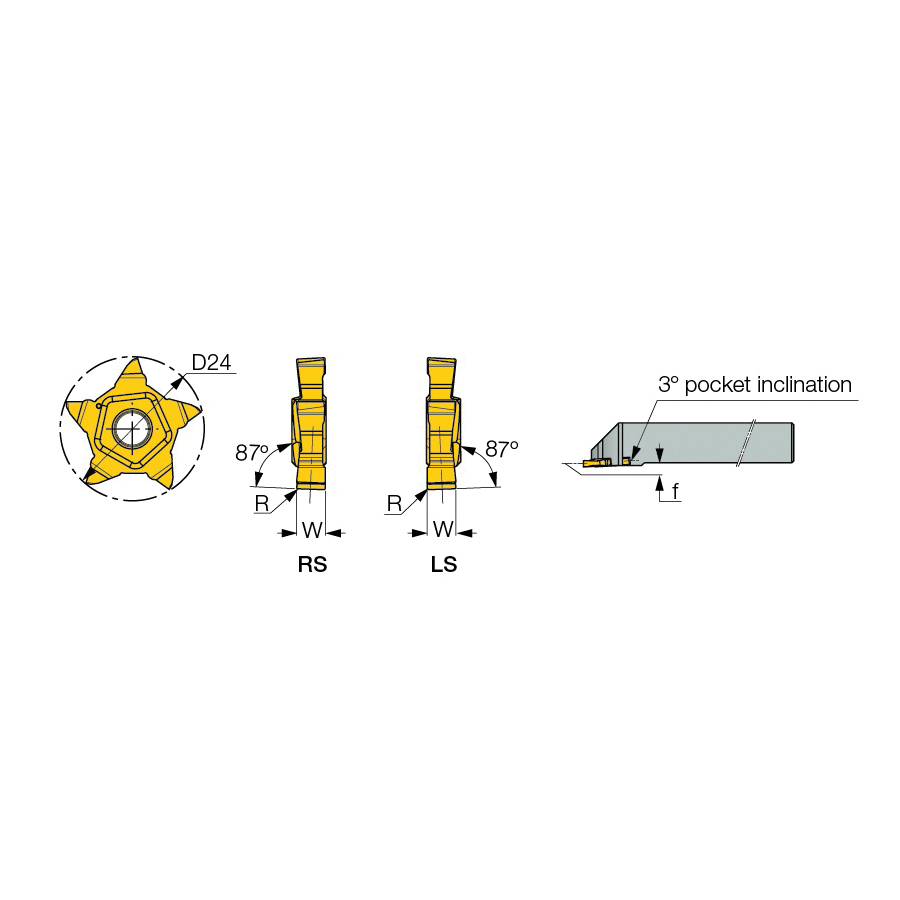

Iscar Grooving Insert, External Precision Ground, Series: PENTACUT, PENTA Insert, 24 Insert, Pentagon, 2 mm Cutting Width, 3.5 mm Maximum Depth of Cut, 0 deg Lead Angle, NF Chipbreaker, 0.2 mm Corner Radius, 2 mm Width, Manufacturers Grade: IC908, ISO Code: PENTA 24N200NF020RS IC908, Neutral Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Parting and precision grooving pentagonal inserts
- Used for next to high shoulder applications
Specifications
ApplicationExternal Grooving and Parting
ChipbreakerNF
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width2 mm
FinishPVD-TiAlN Coated
Insert Size24
Insert StylePENTA
ISO CodePENTA 24N200NF020RS IC908
Lead Angle0 deg
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3.5 mm
SeriesPENTACUT
ShapePentagon
TypeExternal Precision Ground
Width2 mm
Additional Information
Country of OriginIL
