Iscar ISCAR 6094993

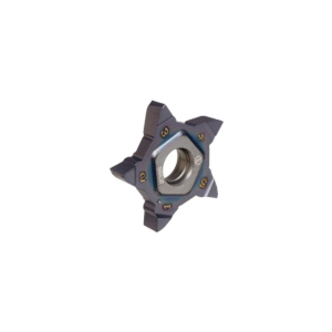

Iscar 6094993 PENTACUT External Grooving Insert, Pentagon Shape, PENTA Insert, 24 Insert, Right Hand Cutting, 0.062 in W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Penta 24n157nf020rs Ic90 8
Factory Order
Iscar Grooving Insert, External, Series: PENTACUT, PENTA Insert, 24 Insert, Pentagon Shape, 0.062 in Cutting Width, 3 mm Maximum Depth of Cut, 87 deg Lead Angle, RS Chipbreaker, 0.2 mm Corner Radius, 0.062 in Width, Manufacturers Grade: IC908, ISO Code: PENTA 24N157-020RS IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Parting and precision grooving pentagonal inserts
- Used for next to high shoulder applications
Specifications
ApplicationExternal Grooving, Groove Turning and Parting
ChipbreakerRS
Corner Radius0.2 mm
Cutting DirectionRight Hand
Cutting Width0.062 in
FinishPVD-TiAlN Coated
Insert Size24
Insert StylePENTA
ISO CodePENTA 24N157-020RS IC908
Lead Angle87 deg
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
SeriesPENTACUT
ShapePentagon
TypeExternal
Width0.062 in
Additional Information
Country of OriginIS
