Iscar ISCAR 6004921

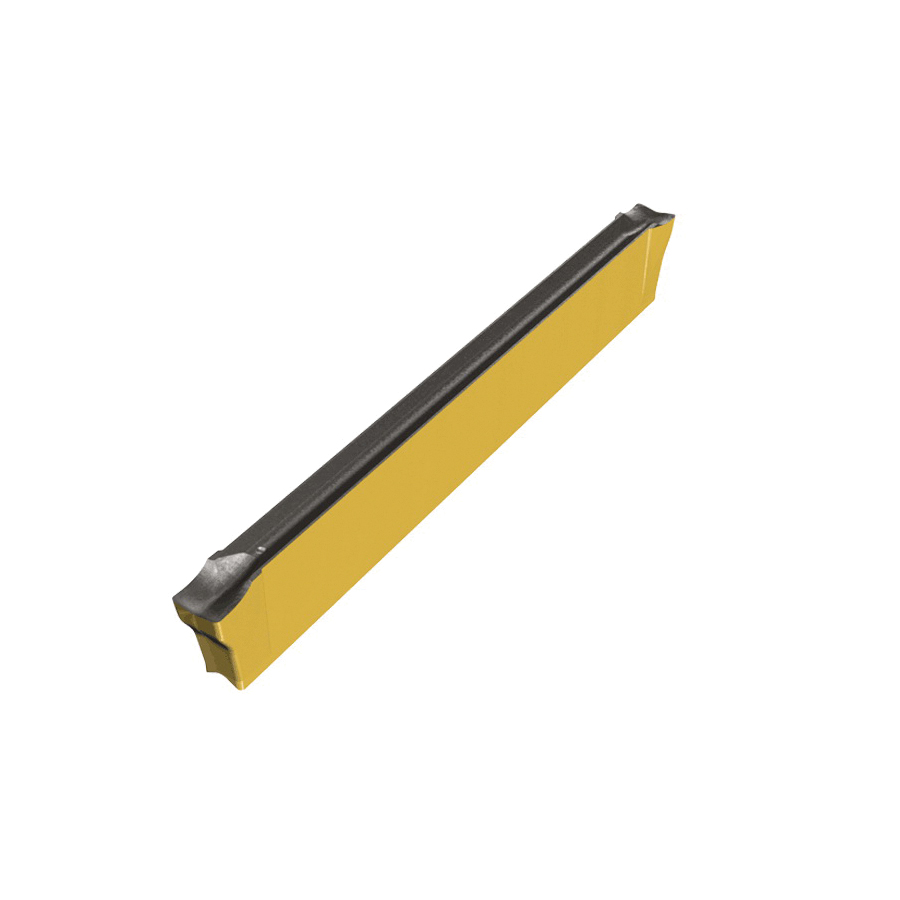

Iscar 6004921 DO-GRIPXL Double Sided Twisted Grooving Insert, Rectangle Shape, DGN Insert, 3002 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Invoice description:
Dgn 3002j-xl Ic808
Factory Order

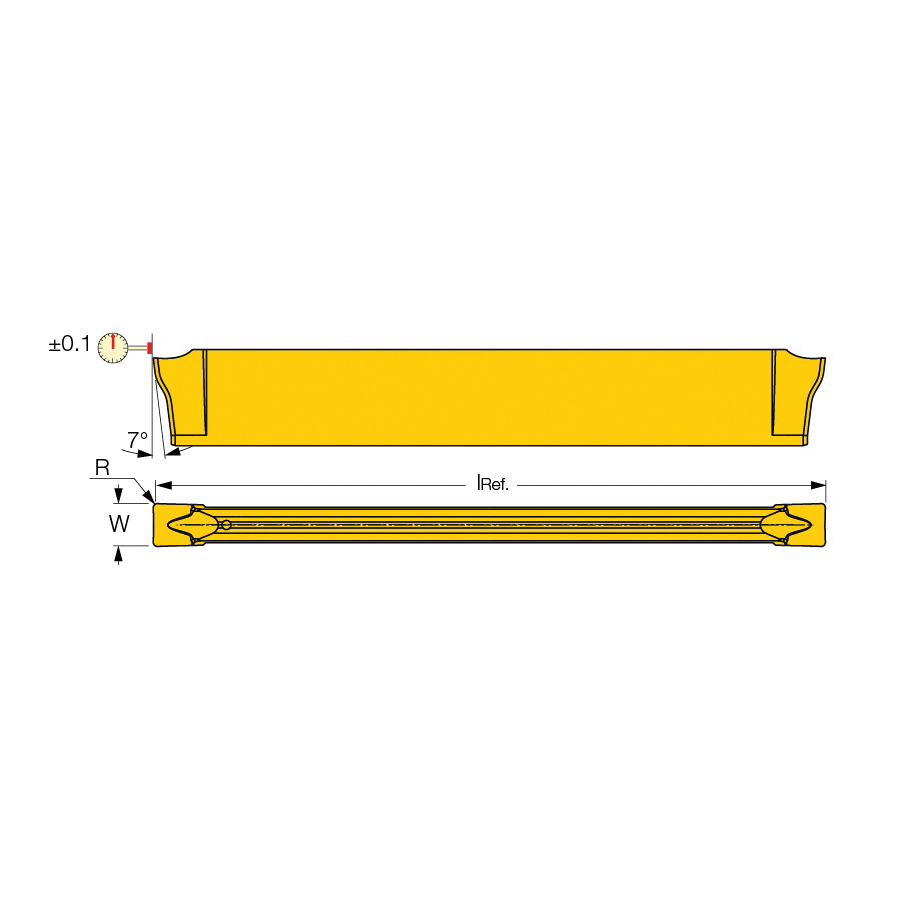

Iscar Grooving Insert, Double Sided Twisted, Series: DO-GRIPXL, DGN Insert, 3002 Insert, Rectangle Shape, 3 mm Cutting Width, 32.5 mm Maximum Depth of Cut, 7 deg Lead Angle, J Chipbreaker, 0.2 mm Corner Radius, Positive Rake, 3 mm Width, 35 mm Length, Manufacturers Grade: IC808, ISO Code: DGN 3002JXL IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials and stainless steel, parting of tubes, small diameters and thin walled parts
- Small diameters and thin walled parts
- Low to medium feeds
Specifications
ApplicationExternal Grooving, Groove Turning and Parting
ChipbreakerJ
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size3002
Insert StyleDGN
ISO CodeDGN 3002JXL IC808
Lead Angle7 deg
Length35 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut32.5 mm
RakePositive
SeriesDO-GRIPXL
ShapeRectangle
TypeDouble Sided Twisted
Width3 mm
Additional Information
Country of OriginIS
