Iscar ISCAR 6003641

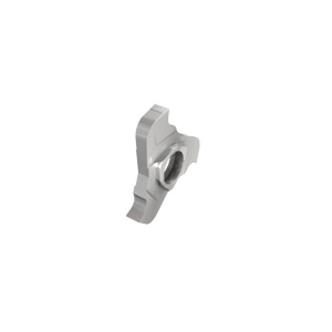

Iscar 6003641 CHAMSLIT Triple Edge Grooving Insert, TRI Insert, 16RK Insert, Right Hand Cutting, 5 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6003641
$51.22 EA
Factory Order
Estimated to ship in 14 days
QTY:

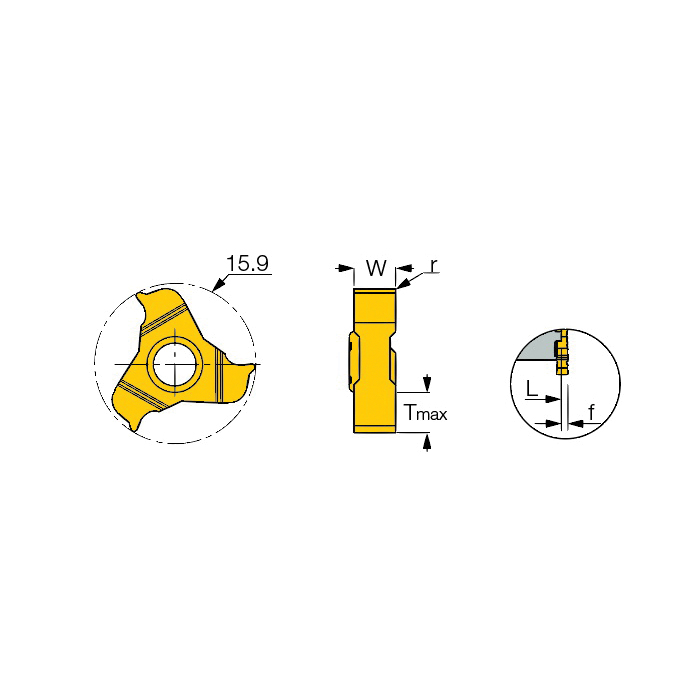

Iscar Grooving Insert, Triple Edge, Series: CHAMSLIT, TRI Insert, 16RK Insert, 5 mm Cutting Width, 0.189 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 0.197 in Width, Manufacturers Grade: IC908, ISO Code: TRI 16RK-5.0-0.2, Right Hand Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Grooving and Parting
Corner Radius0.2 mm
Cutting DirectionRight Hand
Cutting Width5 mm
FinishPVD-TiAlN Coated
Insert Size16RK
Insert StyleTRI
ISO CodeTRI 16RK-5.0-0.2
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.189 mm
SeriesCHAMSLIT
TypeTriple Edge
Width0.197 in
