Iscar ISCAR 6003620

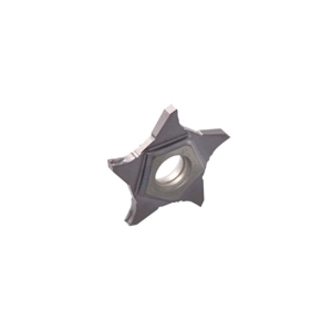

Iscar 6003620 PENTACUT External Grooving Insert, Pentagon Shape, PENTA Insert, 24 Insert, Left Hand Cutting, 2 mm W Cutting, Manufacturers Grade: IC1008, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Invoice description:
Penta 24l200z15d Ic1008
Factory Order

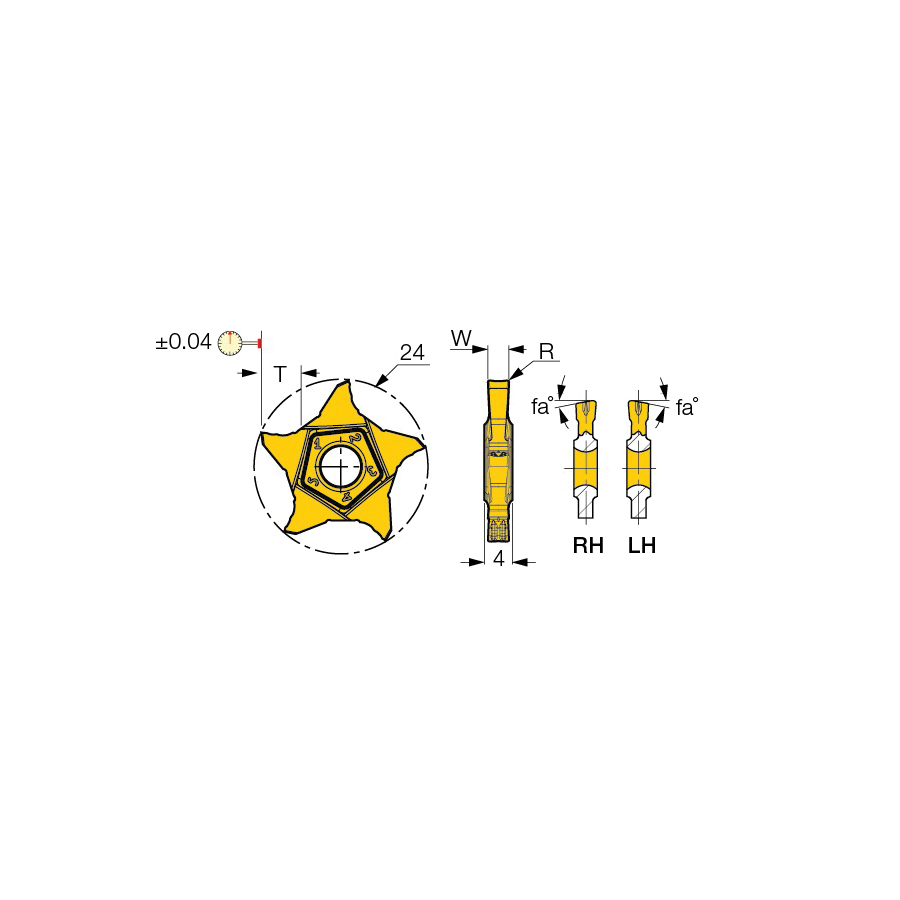

Iscar Grooving Insert, External, Series: PENTACUT, PENTA Insert, 24 Insert, Pentagon, 2 mm Cutting Width, 6 mm Maximum Depth of Cut, 15 deg Lead Angle, Z Chipbreaker, 0.1 mm Corner Radius, 2 mm Width, Manufacturers Grade: IC1008, ISO Code: PENTA 24L200Z15D IC1008, Left Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Parting insert for soft parts and bearing steel, high positive rake
- Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameter
Specifications
ApplicationGroove Turning and Parting
ChipbreakerZ
Corner Radius0.1 mm
Cutting DirectionLeft Hand
Cutting Width2 mm
FinishPVD-TiAlN+TiN Coated
Insert Size24
Insert StylePENTA
ISO CodePENTA 24L200Z15D IC1008
Lead Angle15 deg
Manufacturers GradeIC1008
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut6 mm
SeriesPENTACUT
ShapePentagon
TypeExternal
Width2 mm
Additional Information
Country of OriginIS
