Iscar ISCAR 6003589

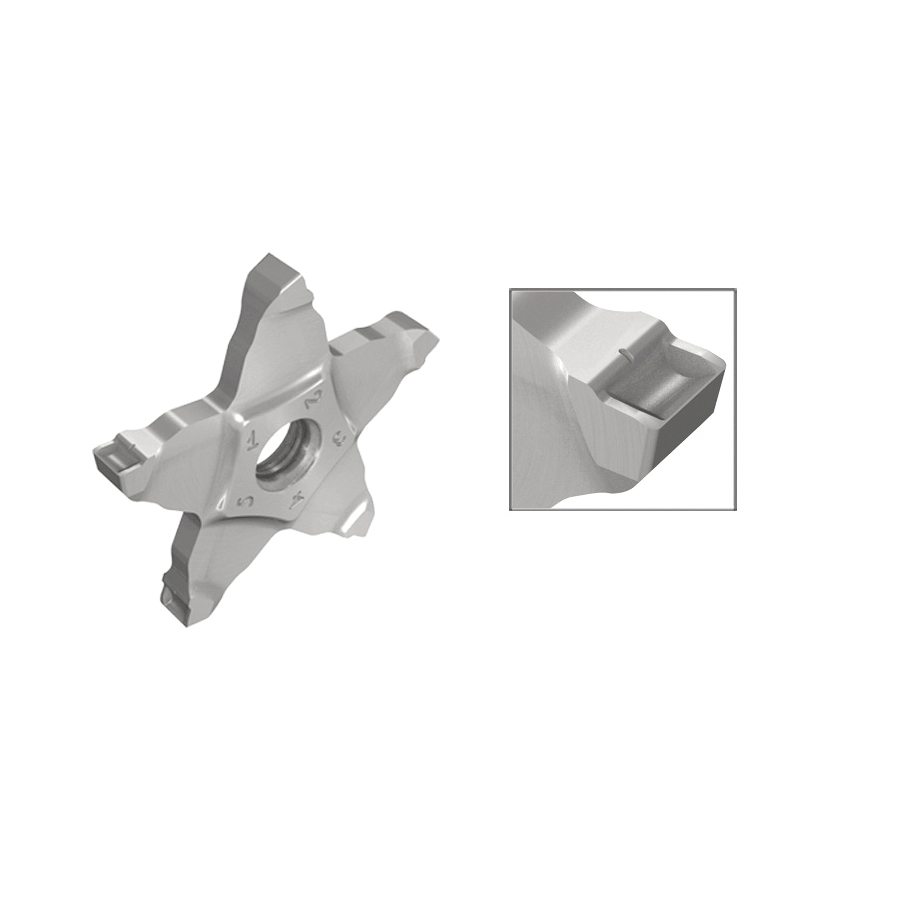

Iscar 6003589 PENTACUT External Grooving Insert, Pentagon Shape, PENTA Insert, 34 Insert, Right Hand Cutting, 2 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Penta 34r200c15d Ic908
Factory Order

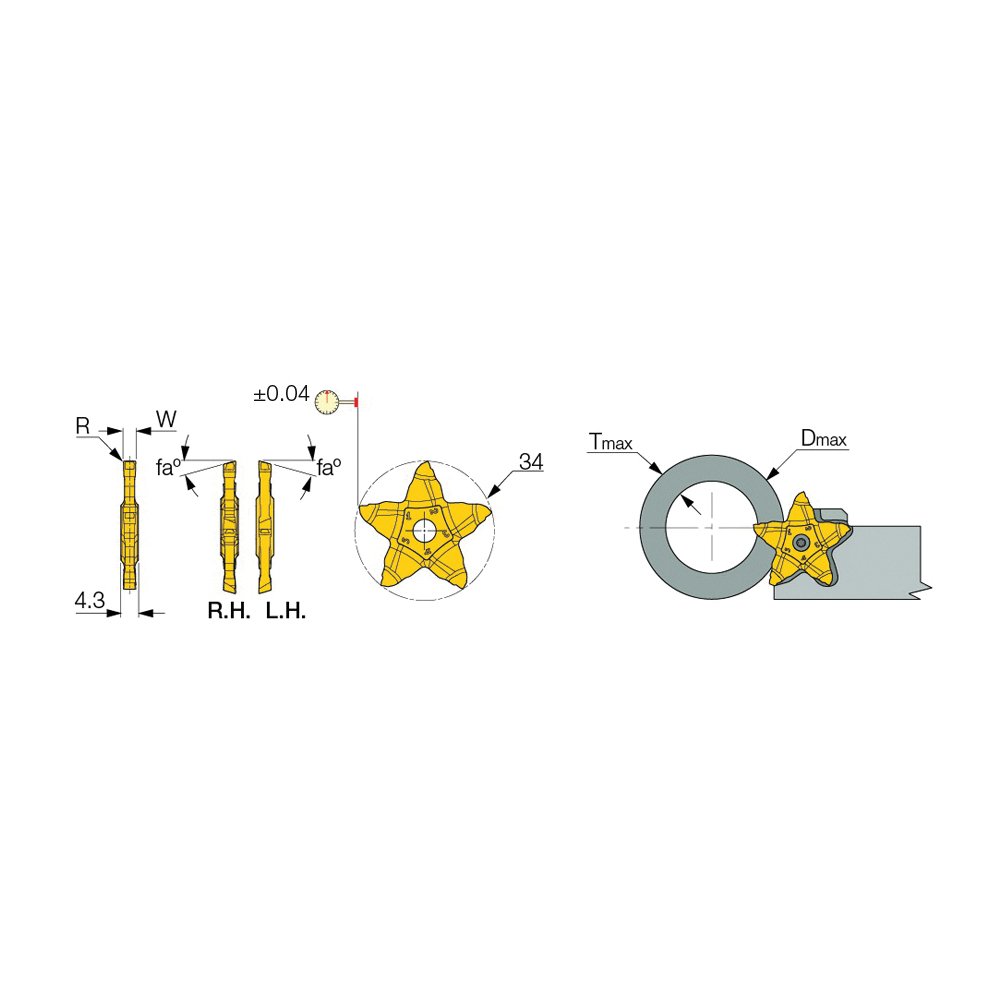

Iscar Grooving Insert, External, PENTA Insert, 34 Insert, Pentagon, 2 mm Cutting Width, 6 mm Maximum Depth of Cut, 15 deg Lead Angle, C Chipbreaker, 0.1 mm Corner Radius, 2 mm Width, Manufacturers Grade: IC908, ISO Code: PENTA 34R200C15D IC908, Right Hand Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium to high feeds
Specifications
ApplicationGroove Turning and Parting
ChipbreakerC
Corner Radius0.1 mm
Cutting DirectionRight Hand
Cutting Width2 mm
FinishPVD-TiAlN Coated
Insert Size34
Insert StylePENTA
ISO CodePENTA 34R200C15D IC908
Lead Angle15 deg
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut6 mm
SeriesPENTACUT
ShapePentagon
TypeExternal
Width2 mm
Additional Information
Country of OriginIS
