Iscar ISCAR 6003536

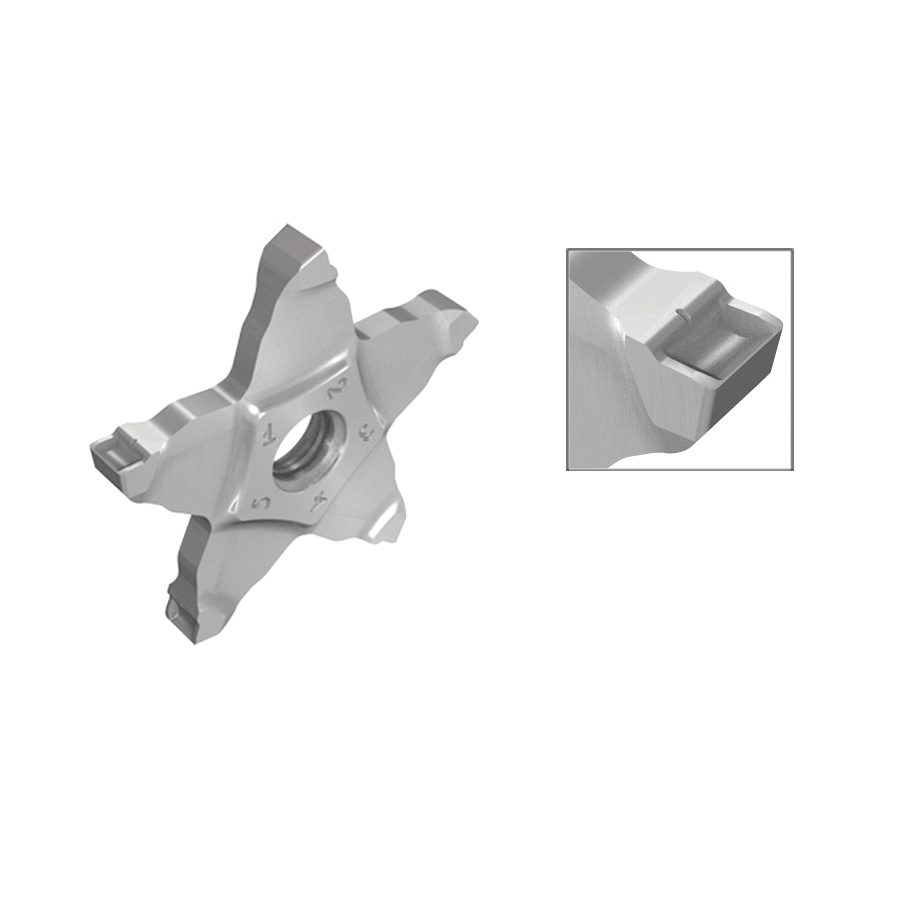

Iscar 6003536 PENTACUT External Grooving Insert, Pentagon Shape, PENTA Insert, 34 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Factory Order
Iscar Grooving Insert, External, Series: PENTACUT, PENTA Insert, 34 Insert, Pentagon, 3 mm Cutting Width, 10 mm Maximum Depth of Cut, 0 deg Lead Angle, C Chipbreaker, 0.4 mm Corner Radius, 3 mm Width, Manufacturers Grade: IC908, ISO Code: PENTA 34N300C040 IC908, Neutral Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Used for parting of bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium to high feeds

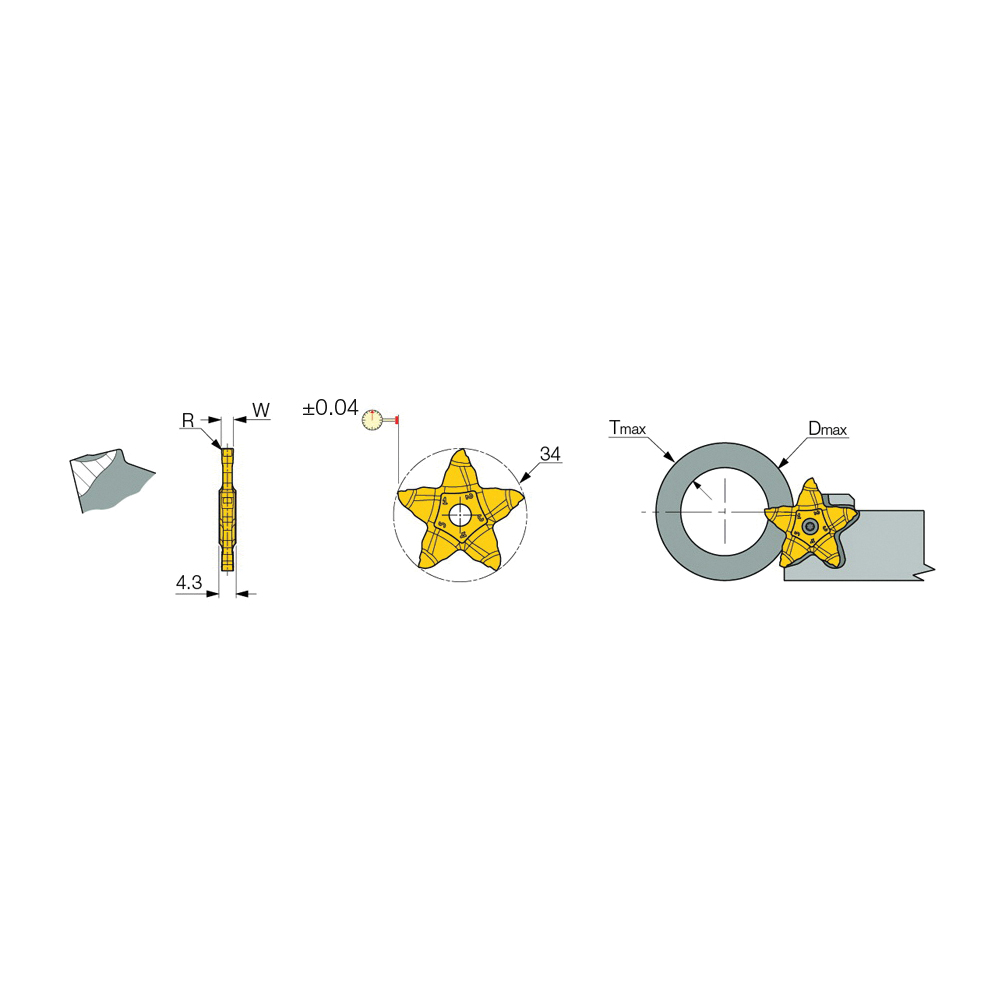

Specifications
ApplicationExternal Grooving, Groove Turning and Parting
ChipbreakerC
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN Coated
Insert Size34
Insert StylePENTA
ISO CodePENTA 34N300C040 IC908
Lead Angle0 deg
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut10 mm
SeriesPENTACUT
ShapePentagon
TypeExternal
Width3 mm
