Iscar ISCAR 6003303

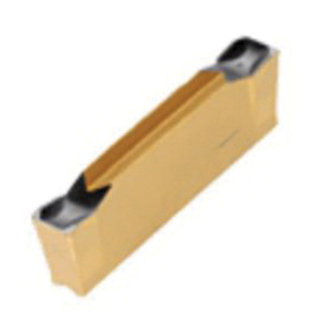

Iscar 6003303 DO-GRIP Double Sided Twisted Grooving Insert With Coolant Holes, Rectangle Shape, DGNC Insert, 3102 Insert, Neutral Cutting, 3.1 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Dgnc 3102c Ic908
Factory Order

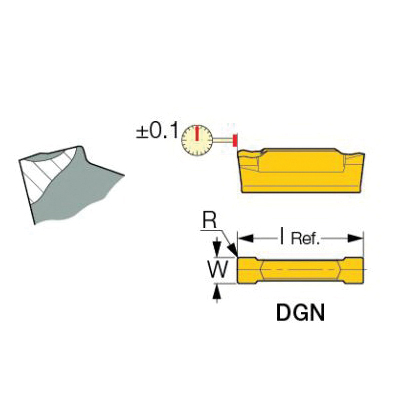

Iscar Grooving Insert, Double Sided Twisted, Series: DO-GRIP, DGNC Insert, 3102 Insert, Rectangle Shape, 3.1 mm Cutting Width, 18 mm Maximum Depth of Cut, C Chipbreaker, 0.2 mm Corner Radius, Positive Rake, 3.1 mm Width, 21 mm Length, Manufacturers Grade: IC908, ISO Code: DGNC 3102C IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium to high feeds
- DGNM single ended for very deep application
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning, Internal Face Grooving and Parting
ChipbreakerC
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3.1 mm
FinishPVD-TiAlN Coated
Insert Size3102
Insert StyleDGNC
ISO CodeDGNC 3102C IC908
Length21 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut18 mm
RakePositive
SeriesDO-GRIP
ShapeRectangle
TypeDouble Sided Twisted
Width3.1 mm
Additional Information
Country of OriginIS
