Iscar ISCAR 6003115

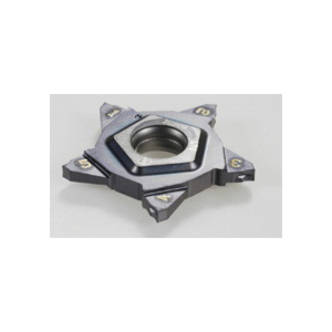

Iscar 6003115 PENTACUT External Grooving Insert, Pentagon Shape, PENTA Insert, 24 Insert, Neutral Cutting, 1.7 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Penta 24n170j010 Ic908
Factory Order
Iscar Grooving Insert, External, Series: PENTACUT, PENTA Insert, 24 Insert, Pentagon Shape, 1.7 mm Cutting Width, 3 mm Maximum Depth of Cut, 0 deg Lead Angle, J Chipbreaker, 0.1 mm Corner Radius, 1.7 mm Width, Manufacturers Grade: IC908, ISO Code: PENTA 24N170J010 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Parting and precision grooving insert on soft parts, minimizes burr size

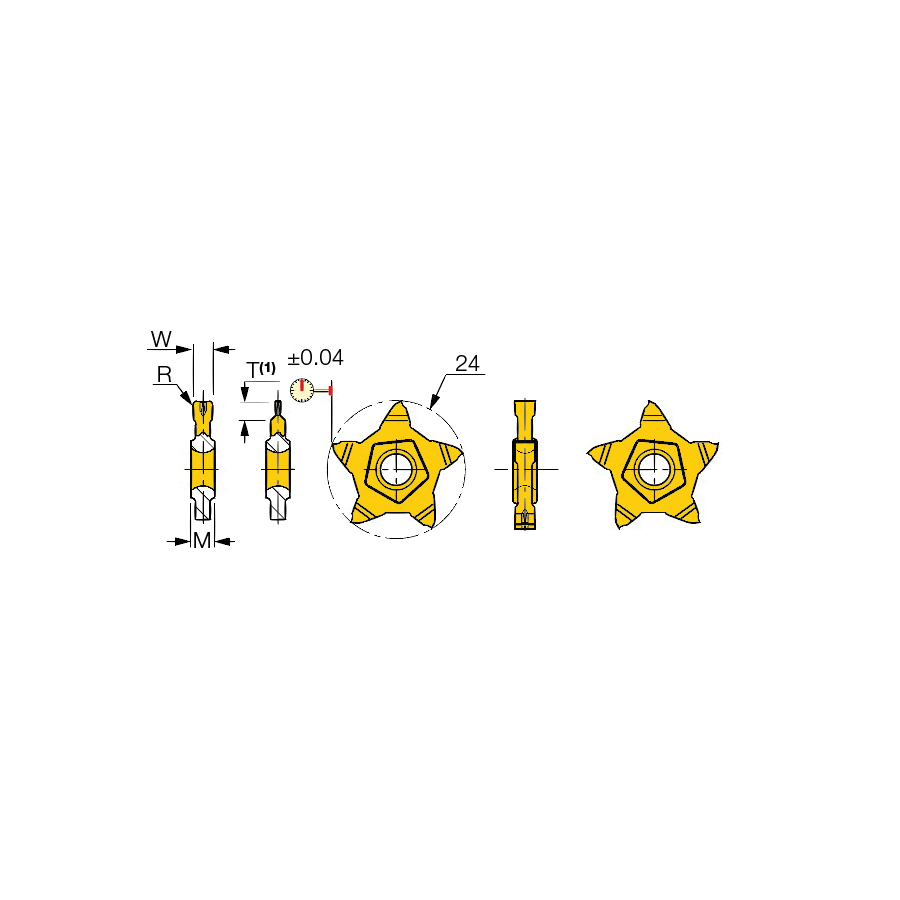

Specifications
ApplicationExternal Grooving, Parting and Threading
ChipbreakerJ
Corner Radius0.1 mm
Cutting DirectionNeutral
Cutting Width1.7 mm
FinishPVD-TiAlN Coated
Insert Size24
Insert StylePENTA
ISO CodePENTA 24N170J010 IC908
Lead Angle0 deg
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
SeriesPENTACUT
ShapePentagon
TypeExternal
Width1.7 mm
Additional Information
Country of OriginIS
