Iscar ISCAR 6003105

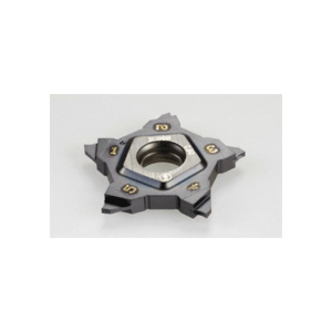

Iscar 6003105 PENTACUT External Precision Ground Grooving Insert, Pentagon Shape, PENTA Insert, 24 Insert, Neutral Cutting, 0.8 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Penta 24n080j000 Ic908
Factory Order
Iscar Grooving Insert, External Precision Ground, Series: PENTACUT, PENTA Insert, 24 Insert, Pentagon, 0.8 mm Cutting Width, 3.5 mm Maximum Depth of Cut, 0 deg Lead Angle, J Chipbreaker, 0.06 mm Corner Radius, 0.8 mm Width, Manufacturers Grade: IC908, ISO Code: PENTA 24N080J000 IC908, Neutral Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Parting and precision grooving insert on soft parts, minimizes burr size
- Most economical system with 5 cutting edges
Specifications
ApplicationExternal Grooving and Parting
ChipbreakerJ
Corner Radius0.06 mm
Cutting DirectionNeutral
Cutting Width0.8 mm
FinishPVD-TiAlN Coated
Insert Size24
Insert StylePENTA
ISO CodePENTA 24N080J000 IC908
Lead Angle0 deg
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3.5 mm
SeriesPENTACUT
ShapePentagon
TypeExternal Precision Ground
Width0.8 mm
Additional Information
Country of OriginIL
