Iscar ISCAR 6003095

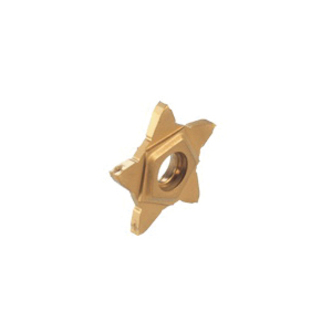

Iscar 6003095 PENTACUT External Grooving Insert, Pentagon Shape, PENTA Insert, 24 Insert, Right Hand Cutting, 1 mm W Cutting, Manufacturers Grade: IC1008, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Invoice description:
Penta 24r100j15d Ic1008
Factory Order

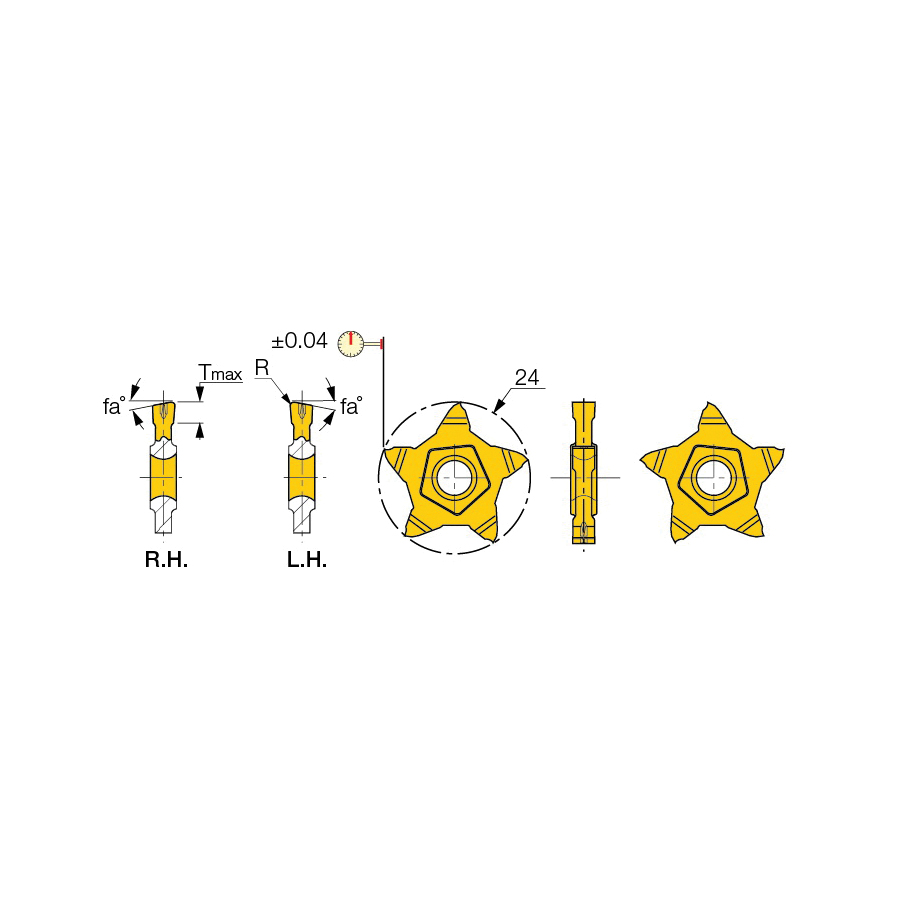

Iscar Grooving Insert, External, Series: PENTACUT, PENTA Insert, 24 Insert, Pentagon Shape, 1 mm Cutting Width, 3 mm Maximum Depth of Cut, 15 deg Lead Angle, J Chipbreaker, 0.06 mm Corner Radius, 1 mm Width, Manufacturers Grade: IC1008, ISO Code: PENTA 24R100J15D IC1008, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Features
- A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters
- Easy and fast edge indexing from either side of the holder
- Multi-corner, five cutting edges that provide the most advantageous price per cutting edge
- Inserts with 5 cutting edges for parting of tubes, small and thin walled parts
Specifications
ApplicationGroove Turning and Parting
ChipbreakerJ
Corner Radius0.06 mm
Cutting DirectionRight Hand
Cutting Width1 mm
FinishPVD-TiAlN+TiN Coated
Insert Size24
Insert StylePENTA
ISO CodePENTA 24R100J15D IC1008
Lead Angle15 deg
Manufacturers GradeIC1008
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
SeriesPENTACUT
ShapePentagon
TypeExternal
Width1 mm
Additional Information
Country of OriginIS
