GARR GARR 21641

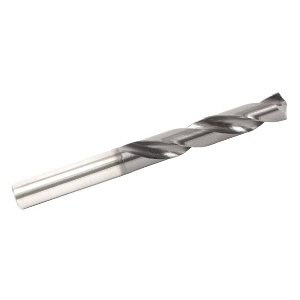

GARR 21641 1280H High Performance Jobber Length Drill Bit, O Drill - Letter, 0.316 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, TiAlN Coated
Invoice description:
Drill Jl O (0.316) Crb Hp140 Tialn 5xd
Factory Order
GARR Jobber Length Drill Bit, High Performance, Series: 1280H, Imperial, O Drill - Letter, 0.316 in Drill - Decimal Inch, 3-3/4 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-7/8 in Flute Length, 0.316 in Shank, 140 deg Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, No Through Coolant, Submicron Grain Solid Carbide, TiAlN Coated, Shiny Silver Gray, Applicable Materials: High Nickel, High Temperature Alloy, Cobalt Based Alloy, Stainless Steel and Tool Steel
Features
- Extended tool life and greater surface finish through faster SFM rates
- Up to 50% faster than standard carbide drills
- 30 deg helix for better chip evacuation
- Live tooling recommended on lathe processes
- Honed cutting edge
Specifications
Applicable MaterialsHigh Nickel, High Temperature Alloy, Cobalt Based Alloy, Stainless Steel and Tool Steel
ColorShiny Silver Gray
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.316 in
Drill Size - LetterO
FinishTiAlN Coated
Flute Length1-7/8 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length3-3/4 in
Point Angle140 deg
Series1280H
Shank Size0.316 in
Through Coolant (Yes/No)No
TypeHigh Performance
Additional Information
Country of OriginUS
