GARR GARR 21200

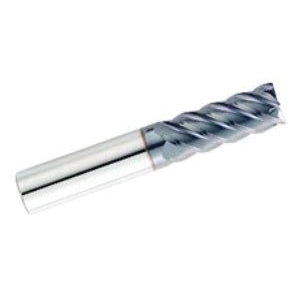

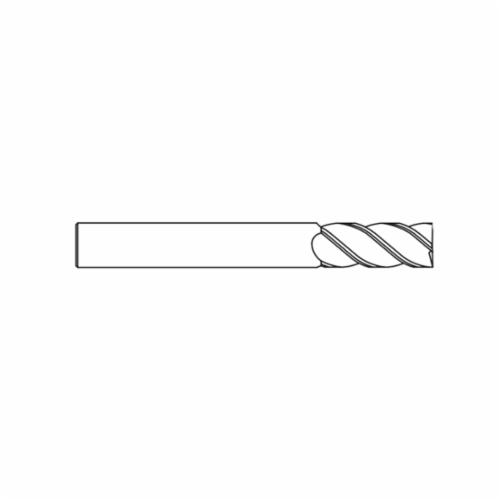

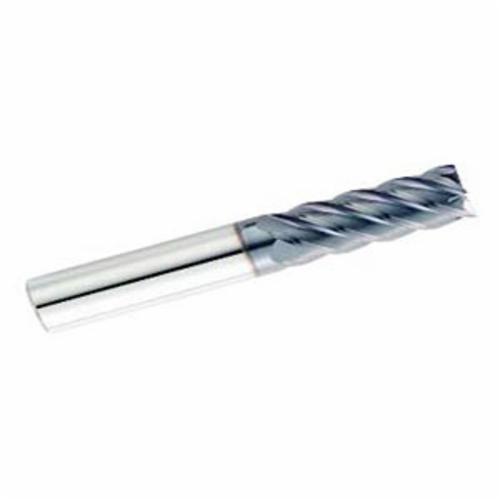

GARR 21200 545MA Center Cutting Square End Mill, 3 mm Dia Cutter, 12 mm Length of Cut, 4 Flutes, 3 mm Dia Shank, 38 mm OAL, Balinit X.CEED
Invoice description:
Em 3x12locx3x38mm 4fl
Factory Order
GARR End Mill, Center Cutting Square End, Series: 545MA, 3 mm Diameter Cutter, 38 mm Overall Length, 12 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, 26 mm Shank Length, Solid Submicron Carbide, Balinit X.CEED
Features
- High performance tool for use in high Rockwell materials
- For hardened die mold, inconel and tool steels above 45 Rc
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter3 mm
Cutting DirectionRight Hand
FinishBalinit X.CEED
Flute TypeSpiral
Helix Angle45 deg
Length of Cut12 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length38 mm
Series545MA
Shank Diameter3 mm
Shank Length26 mm
TypeCenter Cutting Square End
Additional Information
Country of OriginUS
