Iscar ISCAR 5699148

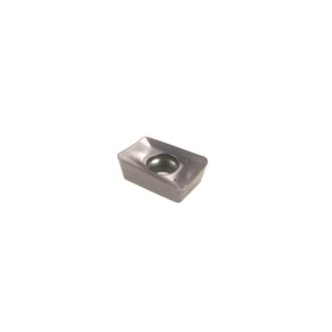

Iscar 5699148 HELIMILL Single Sided Reinforced Milling Insert, APKT Insert, 100312 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5699148
$25.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided Reinforced, Series: HELIMILL, APKT Insert, 100312 Insert, 85 deg Parallelogram Shape, 6.68 mm Inscribed Circle, 3.47 mm Thickness, 6.7 mm Width, 10.5 mm Length, RM Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: APKT 100312TR-RM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerRM
Corner Radius1.2 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle6.68 mm
Insert Size100312
Insert StyleAPKT
ISO CodeAPKT 100312TR-RM IC928
Length10.5 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.47 mm
TypeSingle Sided Reinforced
Width6.7 mm
