Iscar ISCAR 5698518

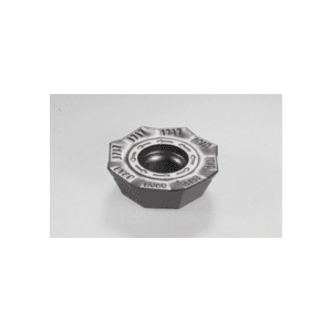

Iscar 5698518 HELIOCTO Single Sided Milling Insert, OEMT Insert, 060405 Insert, Carbide, Manufacturers Grade: IC928, Octagon Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5698518
$24.62 EA
Factory Order
Estimated to ship in 14 days
QTY:

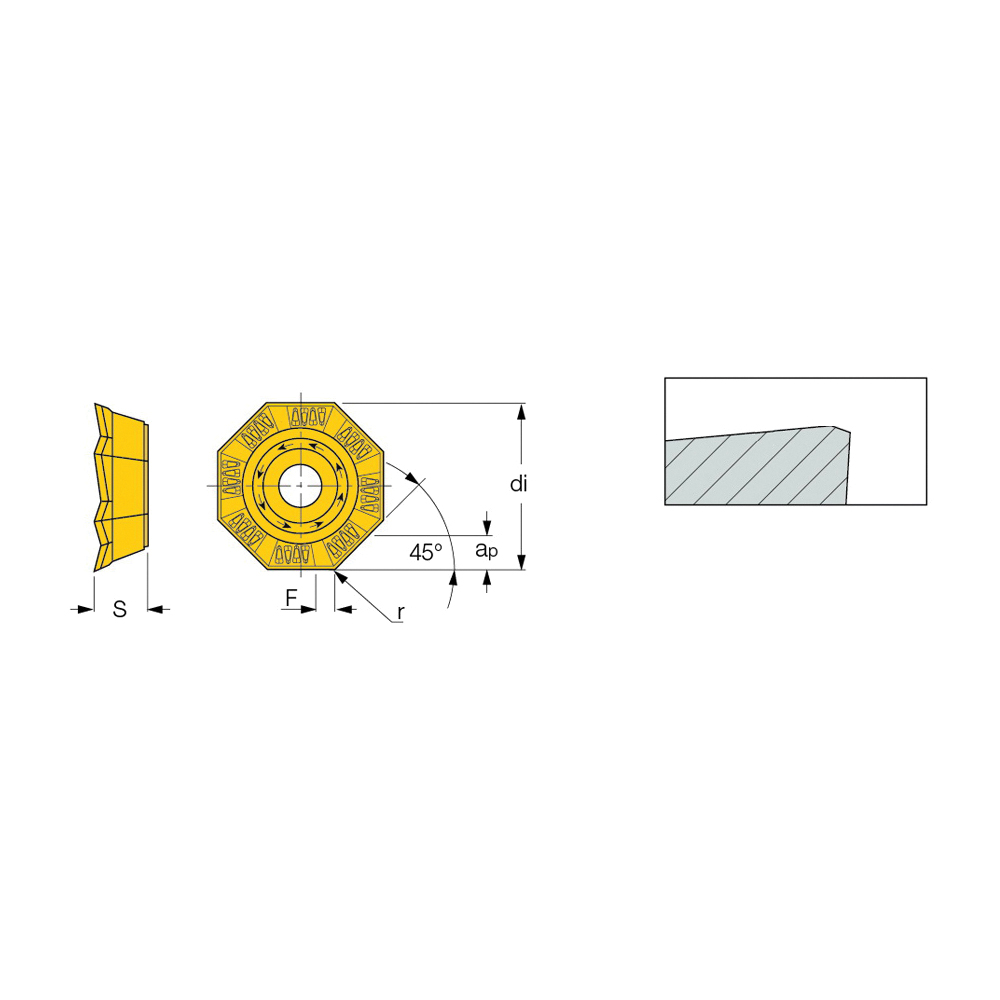

Iscar Milling Insert, Single Sided, Series: HELIOCTO, OEMT Insert, 060405 Insert, Octagon Shape, 14.27 mm Inscribed Circle, 4.74 mm Thickness, 76 Chipbreaker, 0.5 mm Corner Radius, Positive Rake, 45 deg Lead Angle, Manufacturers Grade: IC928, ISO Code: OEMT 060405AER-76 IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
Chipbreaker76
Corner Radius0.5 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle14.27 mm
Insert Size060405
Insert StyleOEMT
ISO CodeOEMT 060405AER-76 IC928
Lead Angle45 deg
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesHELIOCTO
ShapeOctagon
Thickness4.74 mm
TypeSingle Sided
