Iscar ISCAR 5698279

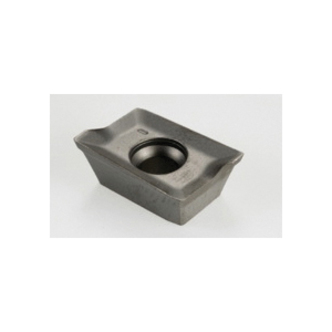

Iscar 5698279 HELIMILL Single Sided Milling Insert, ADKR Insert, 150504 Insert, Carbide, Manufacturers Grade: IC950, 85 deg Parallelogram Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5698279
$28.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKR Insert, 150504 Insert, 85 deg Parallelogram Shape, 5.63 mm Thickness, 9.92 mm Width, 16.3 mm Length, HM Chipbreaker, 0.4 mm Corner Radius, Positive Rake, Manufacturers Grade: IC950, ISO Code: ADKR 150504PDR-HM IC950, Right Hand of Insert, Carbide, PVD Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationBottom Shouldering, Counterboring, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerHM
Corner Radius0.4 mm
FinishPVD Coated
Hand of InsertRight
Insert Size150504
Insert StyleADKR
ISO CodeADKR 150504PDR-HM IC950
Length16.3 mm
Manufacturers GradeIC950
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
RakePositive
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.63 mm
TypeSingle Sided
Width9.92 mm
