Iscar ISCAR 5697950

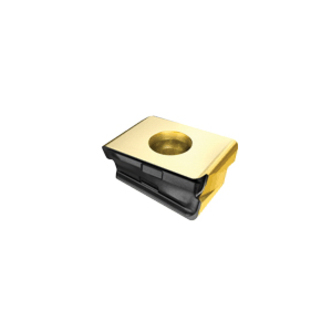

Iscar 5697950 TANGPLUNGE PLUNGING LINE Milling Insert With 4 Cutting Edges, LNHT Insert, 1606 Insert, Carbide, Manufacturers Grade: IC908, Rectangle Shape, Material Grade: H, K, M, P, S
Invoice description:
Htp Lnht 1606 Etr Ic908
Factory Order
Iscar Milling Insert, Series: TANGPLUNGE PLUNGING LINE, LNHT Insert, 1606 Insert, Rectangle Shape, 12.03 mm Thickness, 6.5 mm Width, 16.5 mm Length, ETR Chipbreaker, 1.2 mm Corner Radius, 0 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: HTP LNHT 1606 ETR IC908, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationFacing, Plunging and Recessing, Shouldering and Side Plunging
ChipbreakerETR
Corner Radius1.2 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size1606
Insert StyleLNHT
ISO CodeHTP LNHT 1606 ETR IC908
Lead Angle0 deg
Length16.5 mm
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesTANGPLUNGE PLUNGING LINE
ShapeRectangle
Thickness12.03 mm
Width6.5 mm
Additional Information
Country of OriginIL
