Iscar ISCAR 5697828

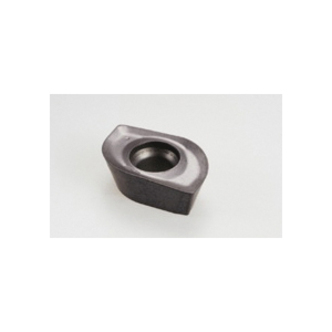

Iscar 5697828 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150564 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5697828
$28.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKT Insert, 150564 Insert, 85 deg Parallelogram Shape, 5.3 mm Thickness, 9.57 mm Width, 14.8 mm Length, HM Chipbreaker, 6.2 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: ADKT 150564R-HM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius6.2 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size150564
Insert StyleADKT
ISO CodeADKT 150564R-HM IC928
Length14.8 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.3 mm
TypeSingle Sided
Width9.57 mm
